3 SERIES (10N)

TORCH MODELS 17,18,26
THREAD PATTERN: 3/8"x 32



CUP

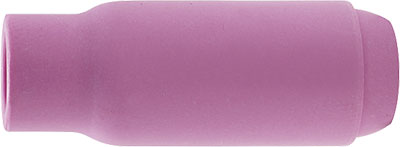

ALUMINA

  • 3A4 (10N50)
  • 3A5 (10N49)
  • 3A6 (10N48)
  • 3A7 (10N47)
  • 3A8 (10N46)
  • 3A10 (10N45)
  • 3A12 (10N44)

ALUMINA - LONG

  • 3A5L (10N49L)
  • 3A6L (10N48L)
  • 3A7L (10N47L)

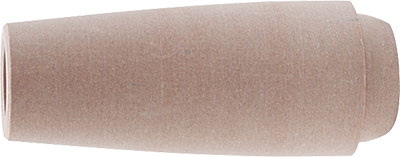

CERAMIC

  • 3C4 (105Z43)
  • 3C5 (105Z42)
  • 3C6 (105Z44)
  • 3C7 (105Z45)
  • 3C8 (08N78)
  • 3C10 (08N79)
  • 3C12 (08N80)

CERAMIC - LONG

  • 3C4L (12N03)
  • 3C5L (105Z60)
  • 3C6L (12N02)
  • 3C7L (105Z61)

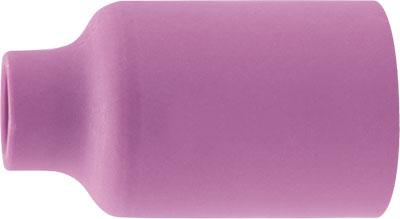

ALUMINA - GAS LENS

  • 3AG4 (54N18)
  • 3AG5 (54N17)
  • 3AG6 (54N16)
  • 3AG7 (54N15)
  • 3AG8 (54N14)
  • 3AG11 (54N19)
  • 3AG12

ALUMINA LONG - GAS LENS
OVERALL LENGTH 3" (7.6cm)

  • 3AG4 (54N18)
  • 3AG5 (54N17)
  • 3AG6 (54N16)
  • 3AG7 (54N15)
  • 3AG8 (54N14)
  • 3AG11 (54N19)
  • 3AG12

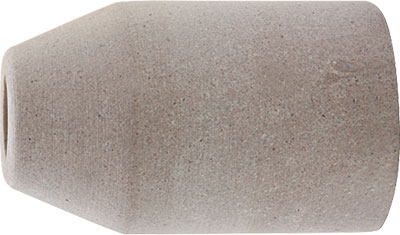

CERAMIC - GAS LENS

  • 3CG4 (54N35)
  • 3CG5 (54N34)
  • 3CG6 (54N33)
  • 3CG7 (54N32)
  • 3CG8 (54N31)
  • 3CG11 (54N36)
  • 3CG14

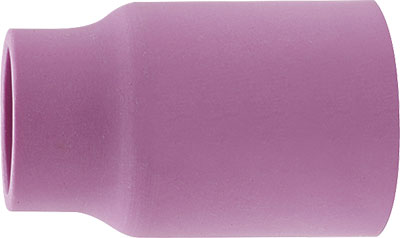

ALUMINA - LARGE DIAMETER

  • 3AG6LD (57N75)
  • 3AG8LD (57N74)
  • 3AG10LD (53N88)
  • 3AG11LD (53N89)
  • 3AG12LD (53N87)

ALUMINA LONG - LARGE DIAMETER
OVERALL LENGTH 2.75" (6.9cm)

  • 3AG6LDL (57N75L)
  • 3AG8LDL (57N74L)
  • 3AG10LDL (53N88L)
  • 3AG12LDL (53N87L)

ALUMINA EXTRA LONG - LARGE DIAMETER
OVERALL LENGTH 3.25" (8.3cm)

  • 3AG6LDXL (57N75XL)
  • 3AG8LDXL (57N74XL)
  • 3AG10LDXL (53N88XL)
  • 3AG12LDXL (53N87XL)

COLLET BODY

STANDARD

  • 3CB20 (10N29)
  • 3CB40 (10N30)
  • 3CB116 (10N31)
  • 3CB332 (10N32)
  • 3CB418 (10N28)
  • 3CB532 (406488)

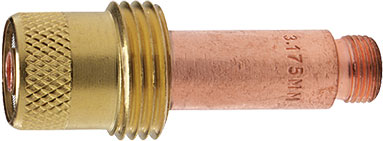

GAS LENS

  • 3GL20 (45V29)
  • 3GL40 (45V24)
  • 3GL116 (45V25)
  • 3GL332 (45V26)
  • 3GL418 (45V27)
  • 3GL532 (45V28)

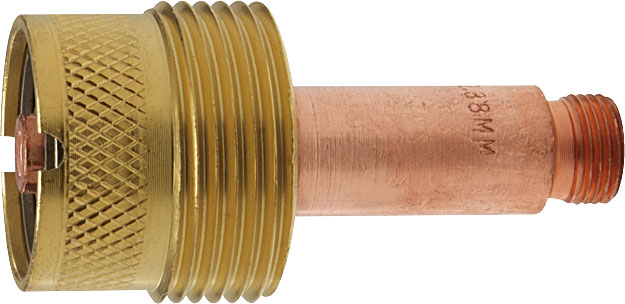

LARGE DIAMETER

  • 3GL116LD (45V116)
  • 3GL332LD (45V64)
  • 3GL418LD (995795)
  • 3GL532LD (45V63)

COLLET

STANDARD

  • 3C20 (10N21)
  • 3C40 (10N22)
  • 3C116 (10N23)
  • 3C332 (10N24)
  • 3C418 (10N25)
  • 3C532 (54N20)

WEDGE

  • 3C040GS
  • 3C116GS
  • 3C332GS
  • 3C418GS
  • 3C532GS

REVERSE

  • 7C20
  • 7C40
  • 7C116
  • 7C332
  • 7C418
  • 7C532

HEATSHIELD

STANDARD

  • 300HS

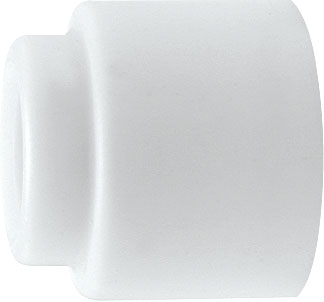

GAS LENS

  • 3GHS

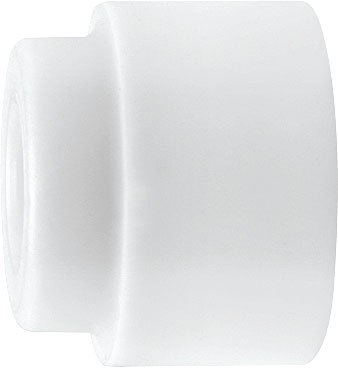

LARGE DIAMETER

  • 3GHSLD

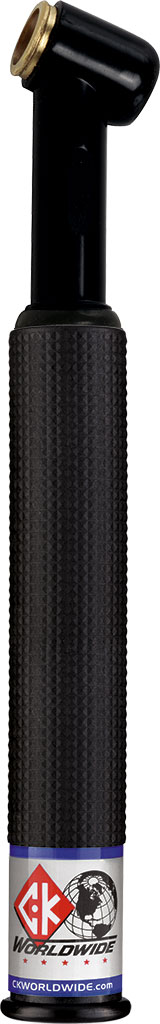

TORCHES

TORCHES USED ON:

  • CK150
  • CKC150
  • CK210
  • CK300
  • CK510
  • TL210
  • TL300
  • TL18
  • TL26
  • FL3L
  • CK17
  • CK18
  • CK26
  • CKM350
  • CWHTL300
  • CWH350
  • CWM350
