MICRO TORCH
The Micro Torch is the smallest most versatile TIG torch on the market! With three angular heads this torch allows multiple options for narrow applications where precision is needed and space is limited. This torch package comes complete with an AK-MR accessory kit and tungsten stick-out gauge.
MR70 | AIR COOLED 70AMP
| Head Style | Cable | Cable Length | Super Flex# |
| RIGID | 1 Piece SUPER -FLEX |
12.5 ft. (3.8m) | MR712SF |
| 25 ft. (7.6m) | MR725SF | ||
| PARTS CONSUMABLES 74 / CABLES 52 | |||
MR140 | WATER COOLED 140AMP
| Head Style | Cable | Cable Length | Super Flex# |
| RIGID | 3 Piece SUPER -FLEX |
12.5 ft. (3.8m) | MR1412SF |
| 25 ft. (7.6m) | MR1425SF | ||
| PARTS CONSUMABLES 74 / CABLES 55 | |||

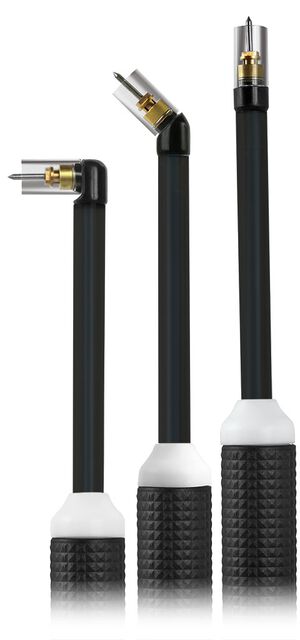

- 45°, 90° and 180° interchangeable heads
- .040" (1.0mm), 1/16" (1.6mm) and 3/32" (2.4mm) collets
- 2 Clear Pyrex cups
- 1 Alumina cup
- 3 Pieces of tungsten (3 different diameters)

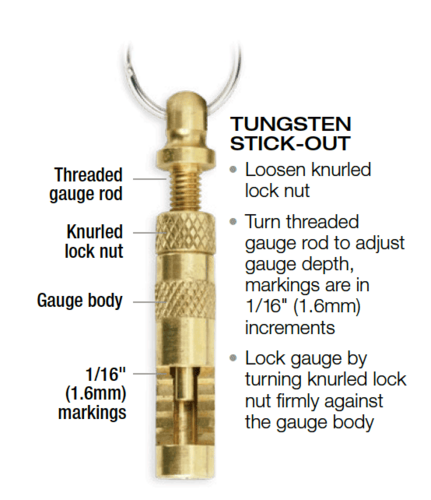

- Tungsten installs easily with tungsten gauge and wrench

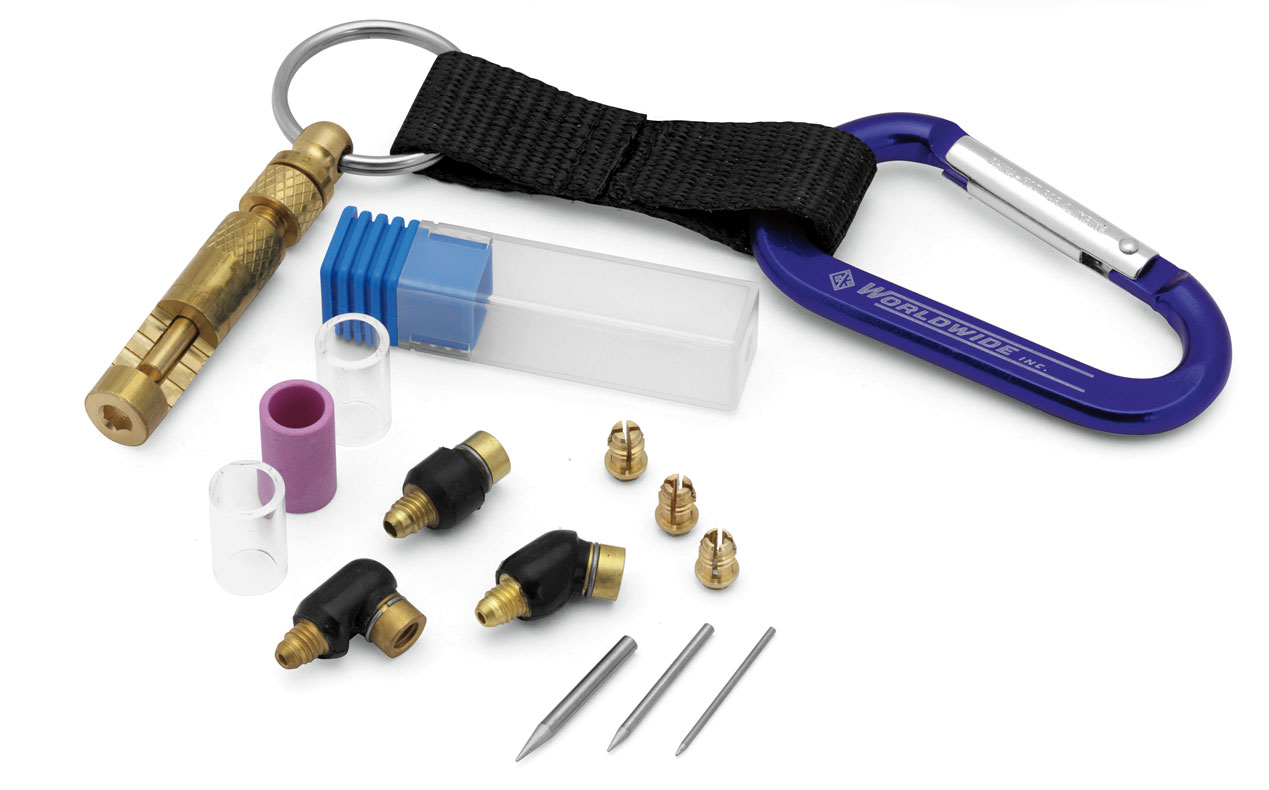

MICRO TORCH ACCESSORIES

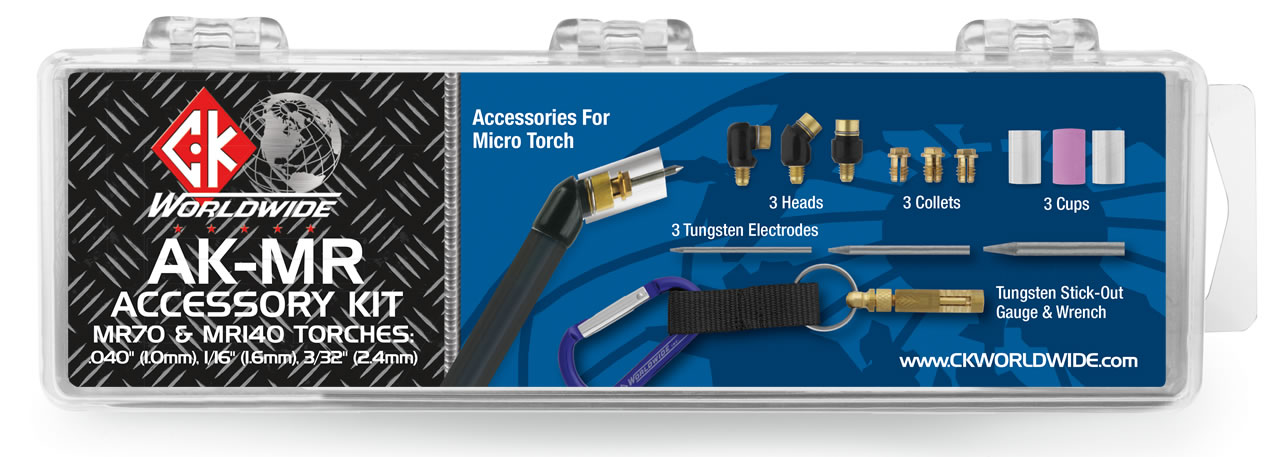

Micro Torch Kit (Part #AK-MR) included in torch package
MR70 & MR140 PARTS
| Head Style | Order # | Description | Order # | Description | Order |
| Head 90° | MR90H | Collet .040" (1.0mm) | MR040C | Cup Alumina | MR4A |
| Head 45° | MR45H | Collet 1/16" (1.6mm) | MR116C | Cup Clear | MR4P |
| Head 180° | MR180H | Collet 3/32" (2.4mm) | MR332C | Handle Bushing | MRHB |
TUNGSTEN | 2% CERIATED
| Diameter | Diameter | Replacement Part # | Actual Size Photo | Specification |
| .040" | 1.0 mm | T0409S20GC2 |  |
LENGTH 0.9" (22.9mm) GRIND 20° QTY. 5/pkg. |
| 1/16" | 1.6 mm | T1169S20GC2 |  |
|
| 3/32" | 2.4 mm | T3329S20GC2 |  |
