BARREL MACHINE TORCHES
FRONT OR BACK LOADING SERIES
The MT500 Series torch body is available in lengths of 7" (17.8cm) or 18" (45.7cm) with a 1-3/8" (35mm) O.D. The unique adjusting cap design of the MT torches provides 1/2" (12.7mm) tungsten adjustment while welding, and for ease of setup. A factory-installed 24 or 32 pitch rack is available on 18" (45.7cm) version only.

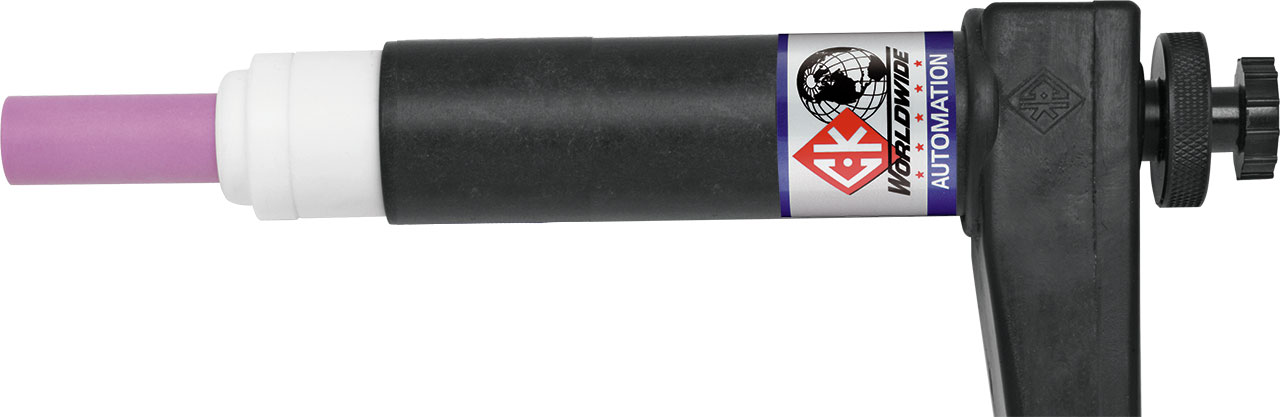

MT500-7 | WATER COOLED | 500 AMP
| Head Style | Cable | Cable Length | Standard # | Super-Flex # | Specifications |
| BARREL STYLE | 3 Piece | 12.5 ft. (3.8m) | MT512-7-1 | MT512SF-7-1 | 7" (17.8cm) 12 oz (340gm) 1-3/8" (35mm) O.D. Barrel Machine Series Head Accessories (4 Series Collet) |
| 3 Piece | 25 ft. (7.6m) | MT525-7-1 | MT512SF-7-1 | ||
| PARTS MT CONSUMABLES 74 / TORCH 79 / CABLES 57 / ADAPTER/DINSE 45–47 & 50 |
|||||

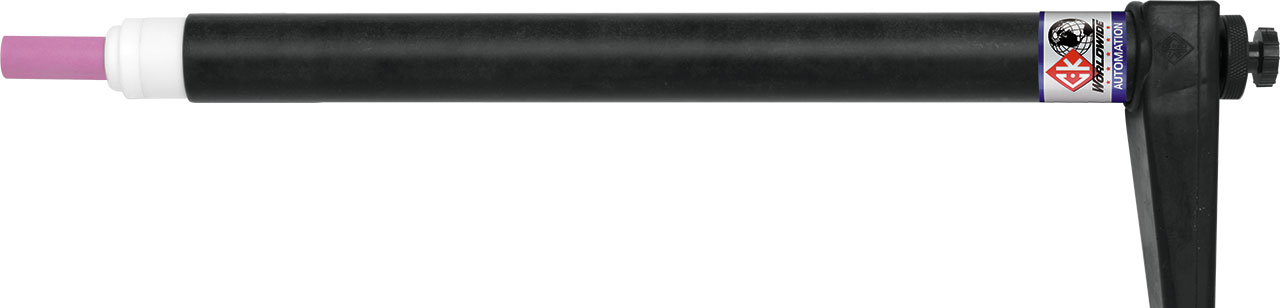

MT500-18 | WATER COOLED | 500 AMP
| Head Style | Cable | Cable Length | Standard # | Super-Flex # | Specifications |
| BARREL STYLE | 3 Piece | 12.5 ft. (3.8m) | MT512-18-1 | MT512SF-18-1 | 18" (45.7cm) 16 oz (454gm) 1-3/8" (35mm) O.D. Barrel Machine Series Head Accessories (4 Series Collet) |
| 3 Piece | 25 ft. (7.6m) | MT525-18-1 | MT525SF-18-1 | ||
| PARTS MT CONSUMABLES 74 / TORCH 79 / CABLES 57 / ADAPTER/DINSE 45–47 & 50 |
|||||
BARREL MACHINE TORCHES
FRONT LOADING ONLY
The CKM230 and CKM350 torches come with a 1-3/8" (35mm) O.D. x 12" (30.5cm) high temperature phenolic resin handle as standard.

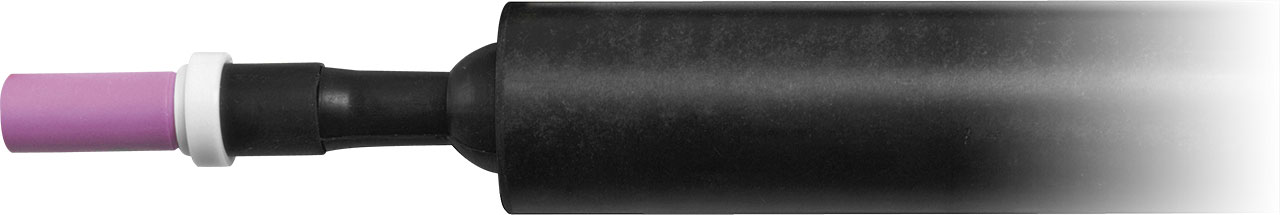

CKM230 | WATER COOLED | 300 AMP
| Head Style | Cable | Cable Length | Standard # | Super-Flex # | Specifications |
| BARREL STYLE | 3 Piece | 12.5 ft. (3.8m) | CKM2312 | CKM2312SF | 14" (35.6cm) 6 oz (170gm) 1-3/8" (35mm) O.D. Barrel 2 Series Head Accessories |
| 3 Piece | 25 ft. (7.6m) | CKM2325 | CKM2325SF | ||
| PARTS MT CONSUMABLES 70 / TORCH 79 / CABLES 57 / ADAPTER/DINSE 45–47 & 50 |
|||||

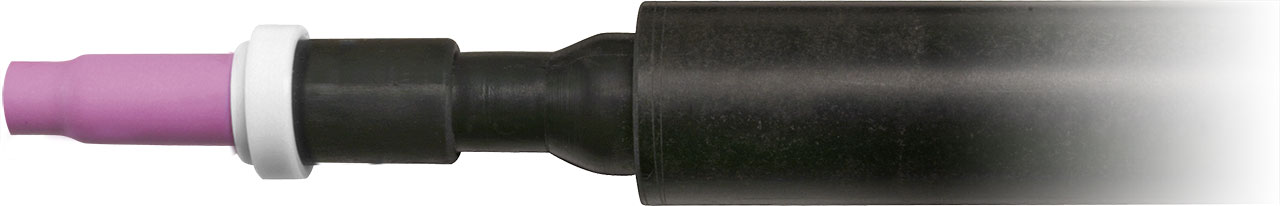

CKM350 | WATER COOLED | 400 AMP
| Head Style | Cable | Cable Length | Standard # | Super-Flex # | Specifications |
| BARREL STYLE | 3 Piece | 12.5 ft. (3.8m) | CKM3512 | CKM3512SF | 15" (38.1cm) 6-1/4 oz (177gm) 1-3/8" (35mm) O.D. Barrel 3 Series Head Accessories |
| 3 Piece | 25 ft. (7.6m) | CKM3525 | CKM3525SF | ||
| PARTS MT CONSUMABLES 71-72 / TORCH 79 / CABLES 57 / ADAPTER/DINSE 45–47 & 50 |
|||||
