This are the available Kits
STANDARD GAS SAVER™ KITS

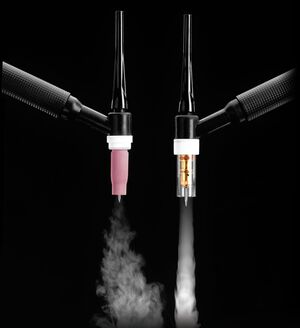

![save up to 40% of shield gas consumption](assets/images/0/gas-saver-kids-3ba79b87.jpg)
Use these conversion kits and save up to 40% of shield gas consumption plus save money on replacement parts.
- Provides better gas coverage versus standard collet bodies
- Tungsten stick-out can be up to 6 times the electrode diameter
- Clear Pyrex or Alumina push on nozzles available
- Improves visibility
- Less expensive replacement parts than standard gas lenses
- Fits most standard silicone rubber insulated torch bodies
- Replaceable screen adapter

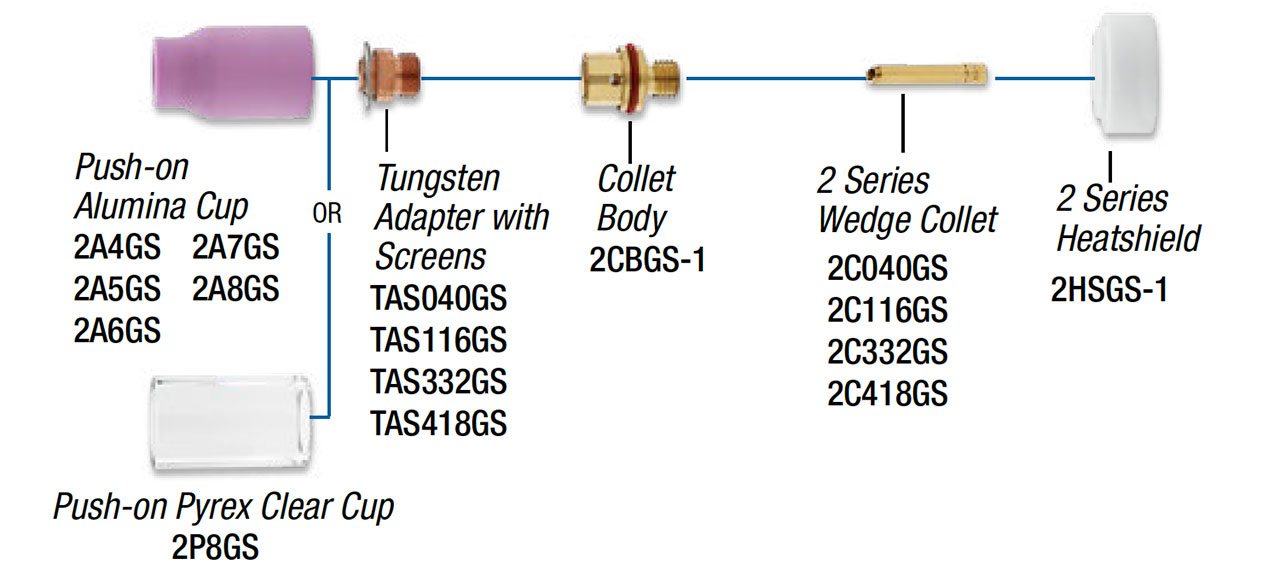

2 SERIES | STANDARD | GAS SAVER KITS
Head Style | Tungsten | CUP TYPE | Order # |
CK9, CK20 (2 SERIES) |
1/16" (1.6mm) | ALUMINA | D2GS116 |
3/32" (2.4mm) | ALUMINA | D2GS332 | |
1/8" (3.2mm) | ALUMINA | D2GS418 | |
1/16" (1.6mm) | PYREX | D2GS116-P | |
3/32" (2.4mm) | PYREX | D2GS332-P | |
1/8" (3.2mm) | PYREX | D2GS418-P |

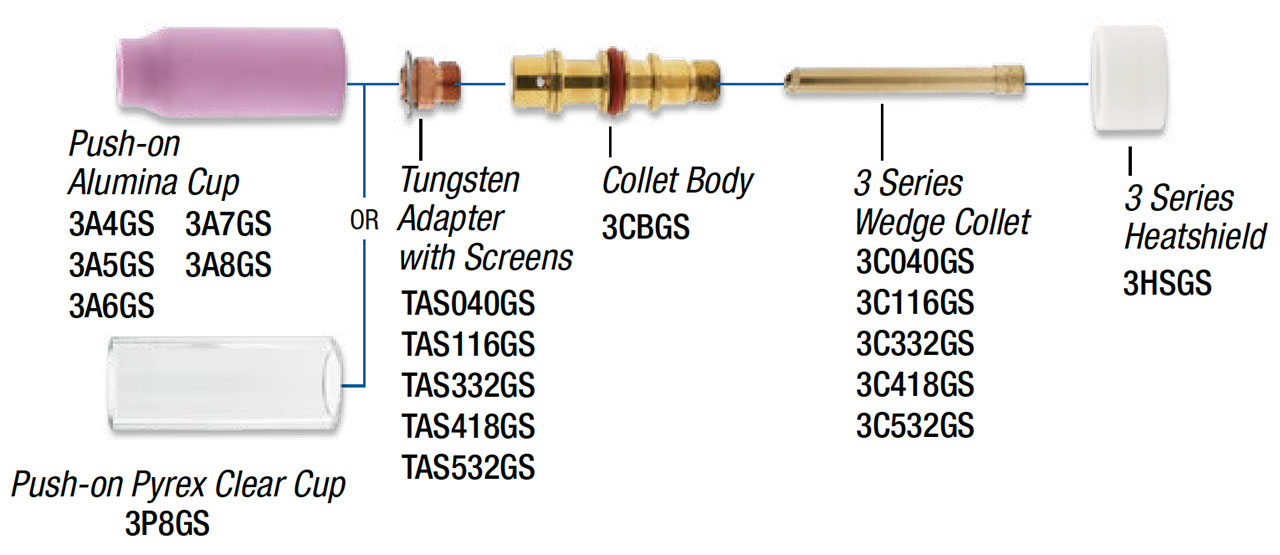

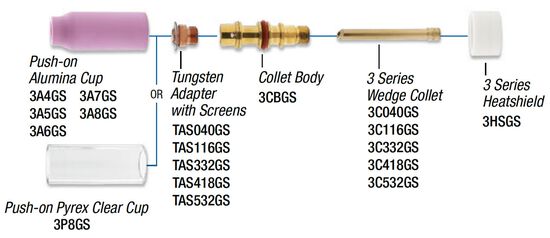

3 SERIES | STANDARD | GAS SAVER KITS
Head Style | Tungsten | CUP TYPE | Order # |
CK17, CK18, CK26 (3 SERIES) |
1/16" (1.6mm) | ALUMINA | D3GS116 |
3/32" (2.4mm) | ALUMINA | D3GS332 | |
1/8" (3.2mm) | ALUMINA | D3GS418 | |
1/16" (1.6mm) | PYREX | D3GS116-P | |
3/32" (2.4mm) | PYREX | D3GS332-P | |
1/8" (3.2mm) | PYREX | D3GS418-P |

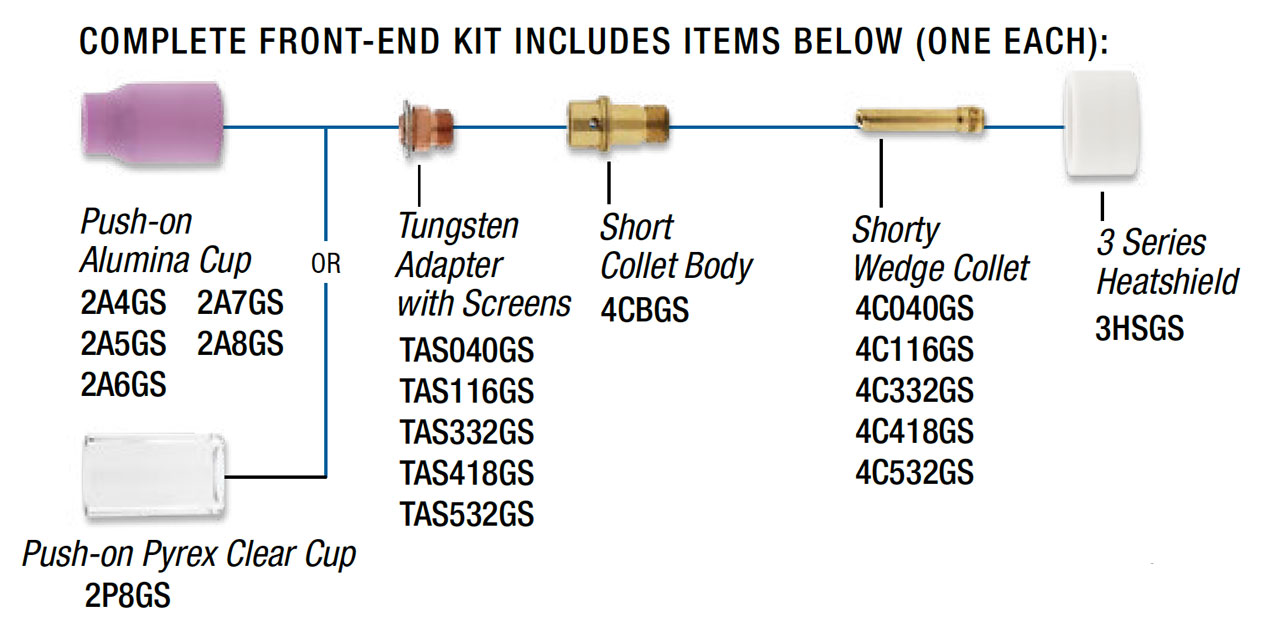

4 SERIES | STUBBY | GAS SAVER KITS
Head Style | Tungsten | CUP TYPE | Order # |
CK17, CK18, CK26 (3 SERIES) |
1/16" (1.6mm) | ALUMINA | D4GS116 |
3/32" (2.4mm) | ALUMINA | D4GS332 | |
1/8" (3.2mm) | ALUMINA | D4GS418 | |
1/16" (1.6mm) | PYREX | D4GS116-P | |
3/32" (2.4mm) | PYREX | D4GS332-P | |
1/8" (3.2mm) | PYREX | D4GS418-P |
LARGE DIAMETER GAS SAVER™ KITS

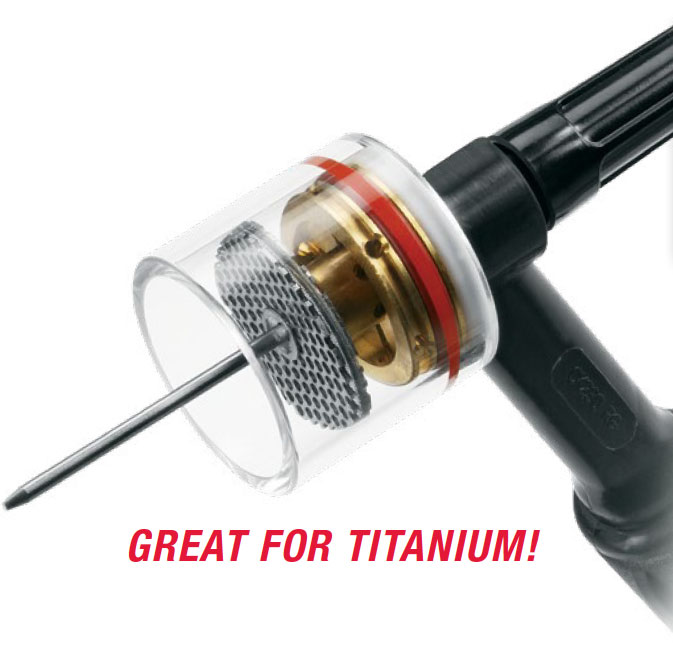

![Great for titanium](assets/images/b/large-diameter-gas-saver-titanium-c6bdc3c6.jpg)
Alloys such as Titanium that require extra shield gas coverage are now being used for aerospace and motorsport components. Standard and large diameter gas lenses are not adequate to insure a larger surface area of shield gas coverage. CK Worldwide’s Large Diameter Gas Saver is ideal for titanium tubing. High-temperature Pyrex glass gas cups insure full visibility of the weld puddle and directs a uniform gas flow pattern over a very large surface area.
- Improved visibility allows odd-angle welding
- Tungsten stick-out can extend up to 1-1/2" (3.81cm) beyondthe edge of the gas cup
- Clear Pyrex or Alumina push on nozzles available
- Less expensive replacement parts than standard gas lenses
- Fits most standard silicone rubber insulated torch bodies
- Replaceable screen adapter

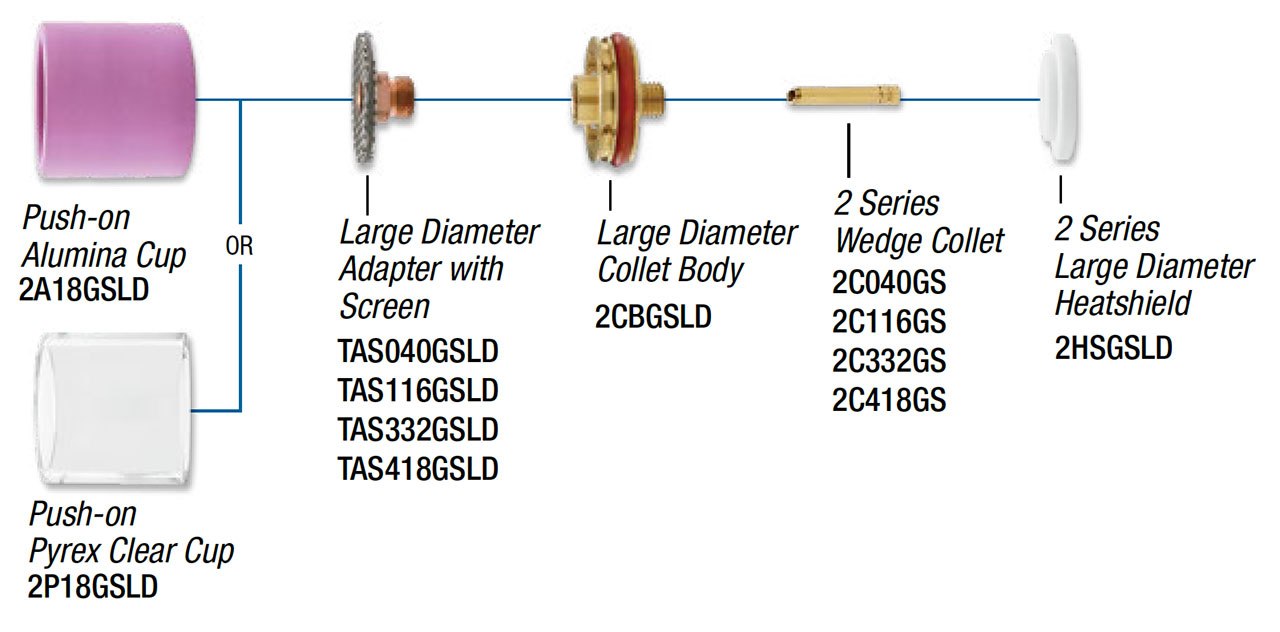

2 SERIES | LRG. DIAMETER |
GAS SAVER KITS
Head Style | Tungsten | CUP TYPE | Order # |
CK9, CK20 (2 SERIES) |
1/16" (1.6mm) | ALUMINA | D2GS116LD-A |
3/32" (2.4mm) | ALUMINA | D2GS332LD-A | |
1/8" (3.2mm) | ALUMINA | D2GS418LD-A | |
1/16" (1.6mm) | PYREX | D2GS116LD | |
3/32" (2.4mm) | PYREX | D2GS332LD | |
1/8" (3.2mm) | PYREX | D2GS418LD |

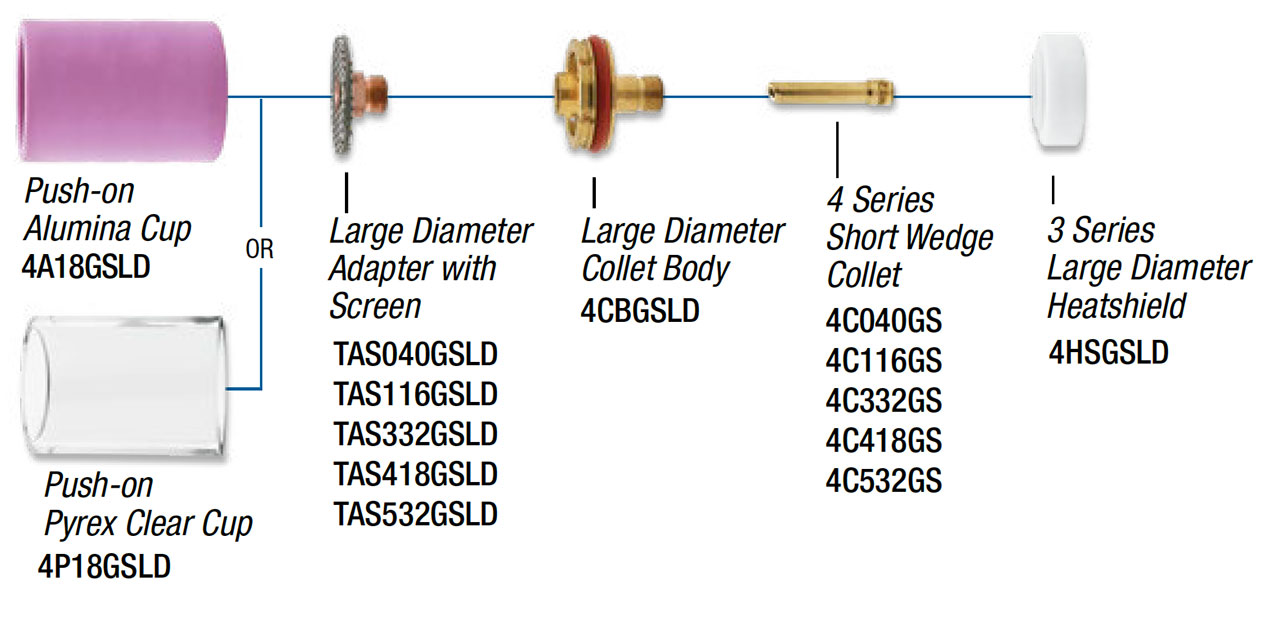

3 SERIES | STANDARD |
GAS SAVER KITS
Head Style | Tungsten | CUP TYPE | Order # |
CK17, CK18, CK26 (3 SERIES) |
1/16" (1.6mm) | ALUMINA | D4GS116LD-A |
3/32" (2.4mm) | ALUMINA | D4GS332LD-A | |
1/8" (3.2mm) | ALUMINA | D4GS418LD-A | |
1/16" (1.6mm) | PYREX | D4GS116LD | |
3/32" (2.4mm) | PYREX | D4GS332LD | |
1/8" (3.2mm) | PYREX |
D4GS418LD |
