SUPER CUPS
THE RIGHT NOZZLE FOR THE TOUGHEST TIG WELDING APPLICATIONS

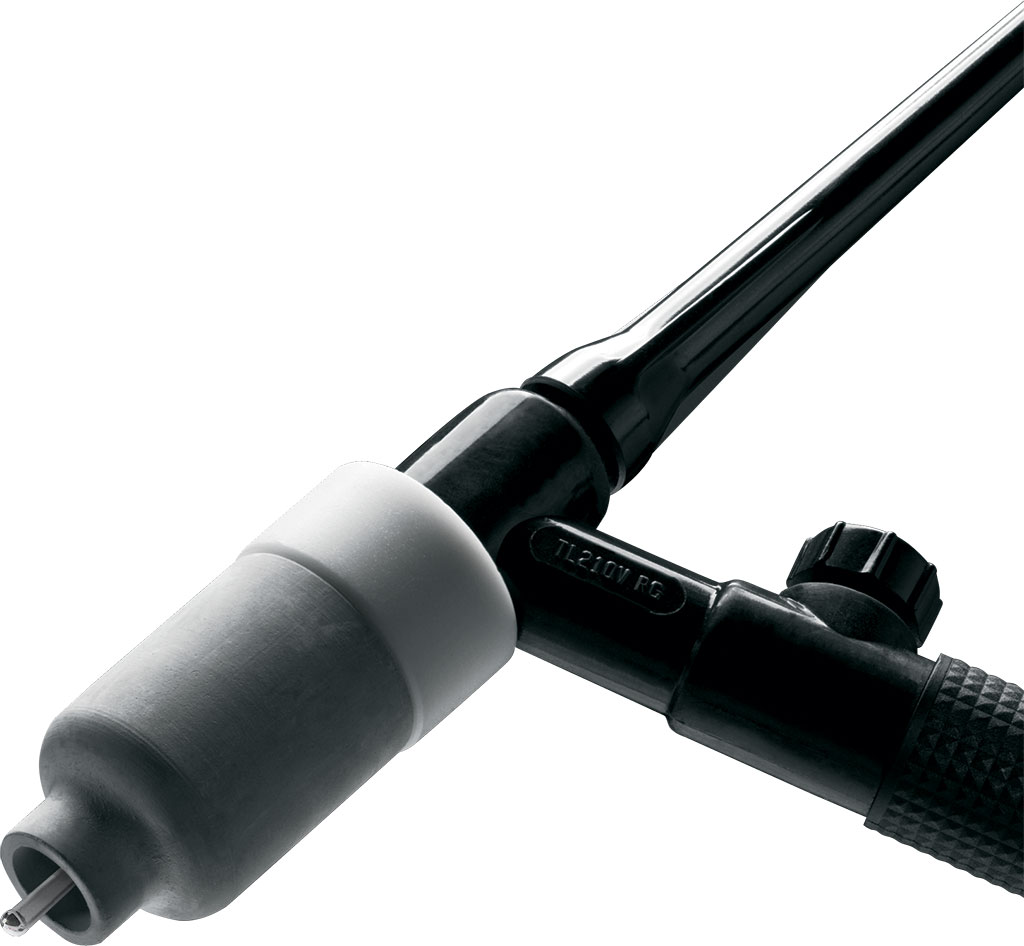

Super Cups withstand high-amperage and highreflective heat applications while minimizing cracking problems related to thermal shock.
- Lasts longer in high-heat applications than alumina cups
- Reduce downtime
- Reduce replacement part costs
- Reduce thermal conductivity by approximately 40%

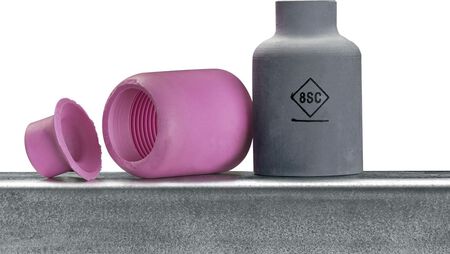

Super Cups minimize cracking problems related to thermal shock. Save time and money while reducing thermal conductivity by 40%.
Available to fit all 2 and 3 Series torches.

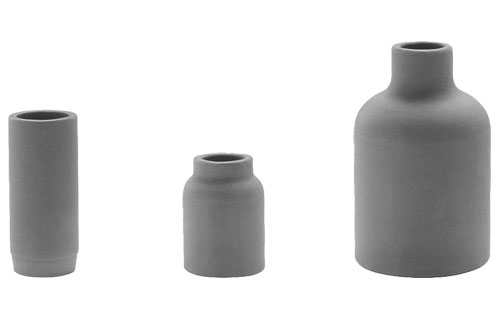

SERIES 2 SUPER CUPS
TORCH MODELS 9, 20
| STANDARD | GAS LENS | LARGE DIAMETER | |||
| 2S4 | (13N08SC) | 2SG4 | (53N58SC) | 3SG6LD | (57N75SC) |
| 2S5 | (13N09SC) | 2SG5 | (53N59SC) | 3SG8LD | (57N74SC) |
| 2S6 | (13N10SC) | 2SG6 | (53N60SC) | 3SG10LD | (53N88SC) |
| 2S7 | (13N11SC) | 2SG7 | (53N61SC) | 3SG12LD | (53N87SC) |
| 2S9 | (13N12SC) | 2SG8 | (53N61SSC) | ||
| 2S10 | (13N13SC) | ||||

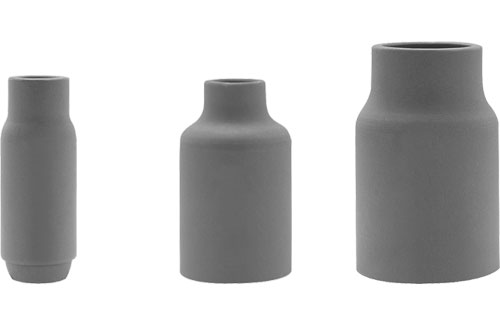

SERIES 3 SUPER CUPS
TORCH MODELS 17, 18, 26
| STANDARD | GAS LENS | LARGE DIAMETER | |||
| 3S4 | (10N50SC) | 3SG4 | (54N18SC) | 3SG6LD | (57N75SC) |
| 3S5 | (10N49SC) | 3SG5 | (54N17SC) | 3SG8LD | (57N74SC) |
| 3S6 | (10N48SC) | 3SG6 | (54N16SC) | 3SG10LD | (53N88SC) |
| 3S7 | (10N47SC) | 3SG7 | (54N15SC) | 3SG12LD | (53N87SC) |
| 3S9 | (10N46SC) | 3SG8 | (54N14SC) | ||
| 3S10 | (10N45SC) | ||||
| 3S12 |
(10N44SC) |
||||

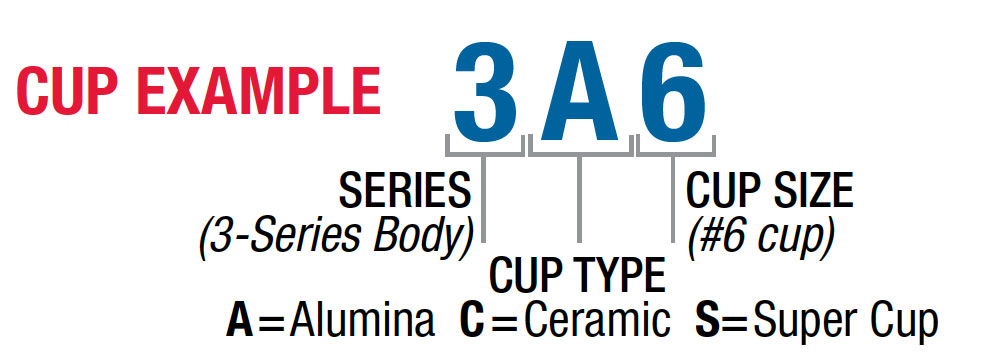

UNDERSTANDING CK WORLDWIDE PART NUMBERS
Please note this is a general formula that works for most CK part numbers and that there may be products that do not follow these guidelines.
2 SERIES (13N)

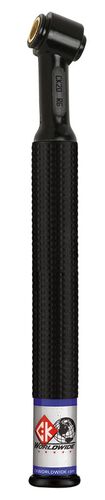

TORCH MODELS 9, 20
THREAD PATTERN: 5/16" x 24
CUP
STANDARD
- 2S4 (13N08SC)
- 2S5 (13N09SC)
- 2S6 (13N10SC)
- 2S7 (13N11SC)
- 2S8 (13N12SC)
- 2S10 (13N13SC)
CUP
GAS LENS
- 2SG4 (53N58SC)
- 2SG5 (53N59SC)
- 2SG6 (53N60SC)
- 2SG7 (53N61SC)
- 2SG8 (53N61SSC)
CUP
LARGE DIAMETER
- 3SG6LD (57N75SC)
- 3SG8LD (57N74SC)
- 3SG10LD (53N88SC)
- 3SG12LD (53N87SC)
COLLET BODY
STANDARD
- 2CB20 (13N25)
- 2CB40 (13N26)
- 2CB116 (13N27)
- 2CB332 (13N28)
- 2CB418 (13N29)
COLLET BODY
GAS LENS
- 2GL20 (45V41)
- 2GL40 (45V42)
- 2GL116 (45V43)
- 2GL332 (45V44)
- 2GL418 (45V45)
COLLET BODY
LARGE DIAMETER
- 2GL0204LD (45V0204S)
- 2GL116LD (45V116S)
- 2GL332LD (45V64S)
- 2GL418LD (995795S)
COLLET
STANDARD
- 2C20 (13N20)
- 2C40 (13N21)
- 2C116 (13N22)
- 2C332 (13N23)
- 2C418 (13N24)
WEDGE
- 2C040GS
- 2C116GS
- 2C332GS
- 2C418GS
REVERSE
- 6C20
- 6C40
- 6C116
- 6C332
- 6C418
COLLET
STANDARD
- See left
WEDGE
- See left
REVERSE
- See left
COLLET
LARGE DIAMETER
- 2C020LD (13N20L)
- 2C040LD (13N21L)
- 2C116LD (13N22L)
- 2C332LD (13N23L)
- 2C418LD (13N24L)
HEATSHIELD
STANDARD
- 2GHS
HEATSHIELD
GAS LENS
- See left
HEATSHIELD
LARGE DIAMETER
- 2GHSLD
TORCHES USED ON:
- CK9
- CK20
- CK25
- CK100
- CK110
- CK130
- CK200
- CK230
- FL2L
- CKM230
- CWH230
- CWM230
3 SERIES (10N)
TORCH MODELS 17,18,26
THREAD PATTERN: 3/8" x 32
CUP
STANDARD
- 3S4 (10N50SC)
- 3S5 (10N49SC)
- 3S6 (10N48SC)
- 3S7 (10N47SC)
- 3S8 (10N46SC)
- 3S10 (10N45SC)
- 3S12 (10N44SC)
CUP
GAS LENS
- 3SG4 (54N18SC)
- 3SG5 (54N17SC)
- 3SG6 (54N16SC)
- 3SG7 (54N15SC)
- 3SG8 (54N14SC
CUP
LARGE DIAMETER
- 3SG6LD (57N75SC)
- 3SG8LD (57N74SC)
- 3SG10LD (53N88SC)
- 3SG12LD (53N87SC)
COLLET BODY
STANDARD
- 3CB20 (10N29)
- 3CB40 (10N30)
- 3CB116 (10N31)
- 3CB332 (10N32)
- 3CB418 (10N28)
- 3CB532 (406488)
COLLET BODY
GAS LENS
- 3GL20 (45V29)
- 3GL40 (45V24)
- 3GL116 (45V25)
- 3GL332 (45V26)
- 3GL418 (45V27)
- 3GL532 (45V28)
COLLET BODY
LARGE DIAMETER
- 3GL116LD (45V116)
- 3GL332LD (45V64)
- 3GL418LD (995795)
- 3GL532LD (45V63)
COLLET
STANDARD
- 3C20 (10N21)
- 3C40 (10N22)
- 3C116 (10N23)
- 3C332 (10N24)
- 3C418 (10N25)
- 3C532 (54N20)
WEDGE
- 3C040GS
- 3C116GS
- 3C332GS
- 3C418GS
- 3C532GS
REVERSE
- 7C20
- 7C40
- 7C116
- 7C332
- 7C418
- 7C532
COLLET
STANDARD
- See left
WEDGE
- See left
REVERSE
- See left
HEATSHIELD
STANDARD
- 300HS
HEATSHIELD
GAS LENS
- 3GHS
HEATSHIELD
LARGE DIAMETER
- 3GHSLD
TORCHES USED ON:
- CK17
- CK18
- CK26
- CK150
- CKC150
- CK210
- CK300
- CK510
- TL18
- TL26
- TL210
- TL300
- FL3L
- CKM350
- CWHTL300
- CWH350
- CWM350
