WHEEL AMPERAGE CONTROL

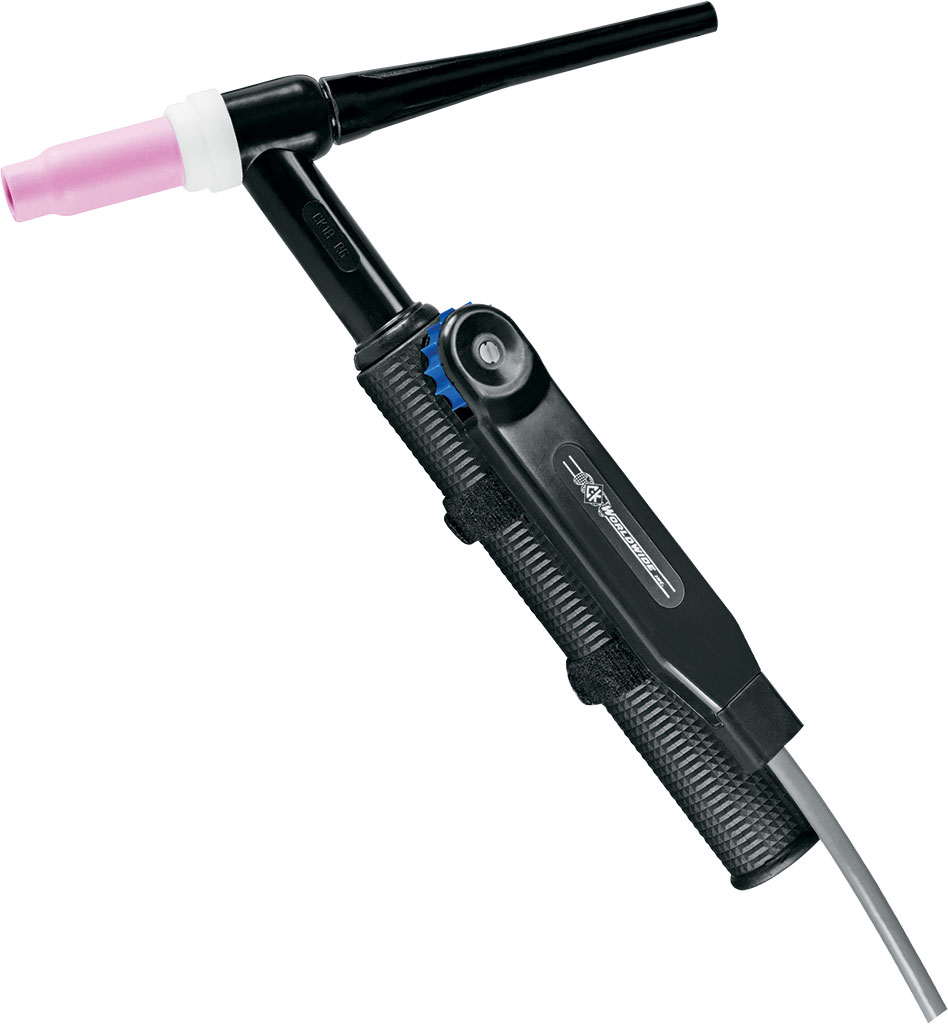

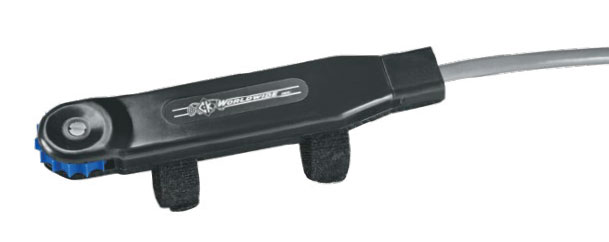

Remote amperage controls provide welding power source contactor ON/OFF, activate gas and/or water solenoids, and provide full range current output control. Handle style includes Velcro® straps where one size fits all handle diameters and retrofits easily on all makes of TIG torches.
- Returns to off automatically
- Insures electrode not “hot” when not in use
- Great for tack welding, short or long welds, and “bumping” technique
- Can be positioned closer to torch head for optimum torch control
WHEEL AMPERAGE CONTROL SELECTOR CHART
| MACHINE MAKE POTENTIOMETER RATING |
PLUG CONFIG & PIN COUNT |
CONTROL CABLE LENGTH |
VELCRO® STRAPS* ONE SIZE FITS ALL |
| CK WORLDWIDE MT200-AC/DC 10K Ohm |
5 Pin Plug | 14 ft. (4.2 m) | WACCV-10-1-MT |
| 26.5 ft. (8.0 m) | WACCV-10-2-MT | ||
| 53 ft. (16.2 m) | WACCV-10-3-MT | ||
| MILLER ELECTRIC 1K Ohm |
14 Pin Plug | 14 ft. (4.2 m) | WACCV-1-1-M14 |
| 26.5 ft. (8.0 m) | WACCV-1-2-M14 | ||
| 53 ft. (16.2 m) | WACCV-1-3-M14 | ||
| 5 Pin Plug | 14 ft. (4.2 m) | WACCV-1-1-M5 | |
| 26.5 ft. (8.0 m) | WACCV-1-2-M5 | ||
| 53 ft. (16.2 m) | WACCV-1-3-M5 |
||
| 6 Pin Plug | 14 ft. (4.2 m) | WACCV-1-1-M6 | |
| 26.5 ft. (8.0 m) | WACCV-1-2-M6 | ||
| 53 ft. (16.2 m) | WACCV-1-3-M6 | ||
| TWECO* 5K Ohm |
14 Pin Plug | 14 ft. (4.2 m) | WACCV-5-1-TD14 |
| 26.5 ft. (8.0 m) | WACCV-5-2-TD14 | ||
| 53 ft. (16.2 m) | WACCV-5-3-TD14 | ||
| 8 Pin Plug | 14 ft. (4.2 m) | WACCV-5-1-TD8 | |
| 26.5 ft. (8.0 m) | WACCV-5-2-TD8 | ||
| 53 ft. (16.2 m) | WACCV-5-3-TD8 | ||
| LINCOLN ELECTRIC 10K Ohm |
14 Pin Plug | 14 ft. (4.2 m) | WACCV-10-1-L14 |
| 26.5 ft. (8.0 m) | WACCV-10-1-L14 | ||
| 53 ft. (16.2 m) | WACCV-10-1-L14 | ||
| 6 Pin Plug | 14 ft. (4.2 m) | WACCV-10-1-L6 | |
| 26.5 ft. (8.0 m) | WACCV-10-2-L6 | ||
| 53 ft. (16.2 m) | WACCV-10-3-L6 | ||
| 5 Pin Plug | 14 ft. (4.2 m) | WACCV-10-1-L5 | |
| 26.5 ft. (8.0 m) | WACCV-10-2-L5 | ||
| 53 ft. (16.2 m) | WACCV-10-3-L5 | ||
| *Tweco 186 AC/DC not available | |||
