CUSTOM-SIZED | PATENTED CK EXCLUSIVE

*Contact CK Worldwide for price and availability on other sizes

PURGE CHAMBER

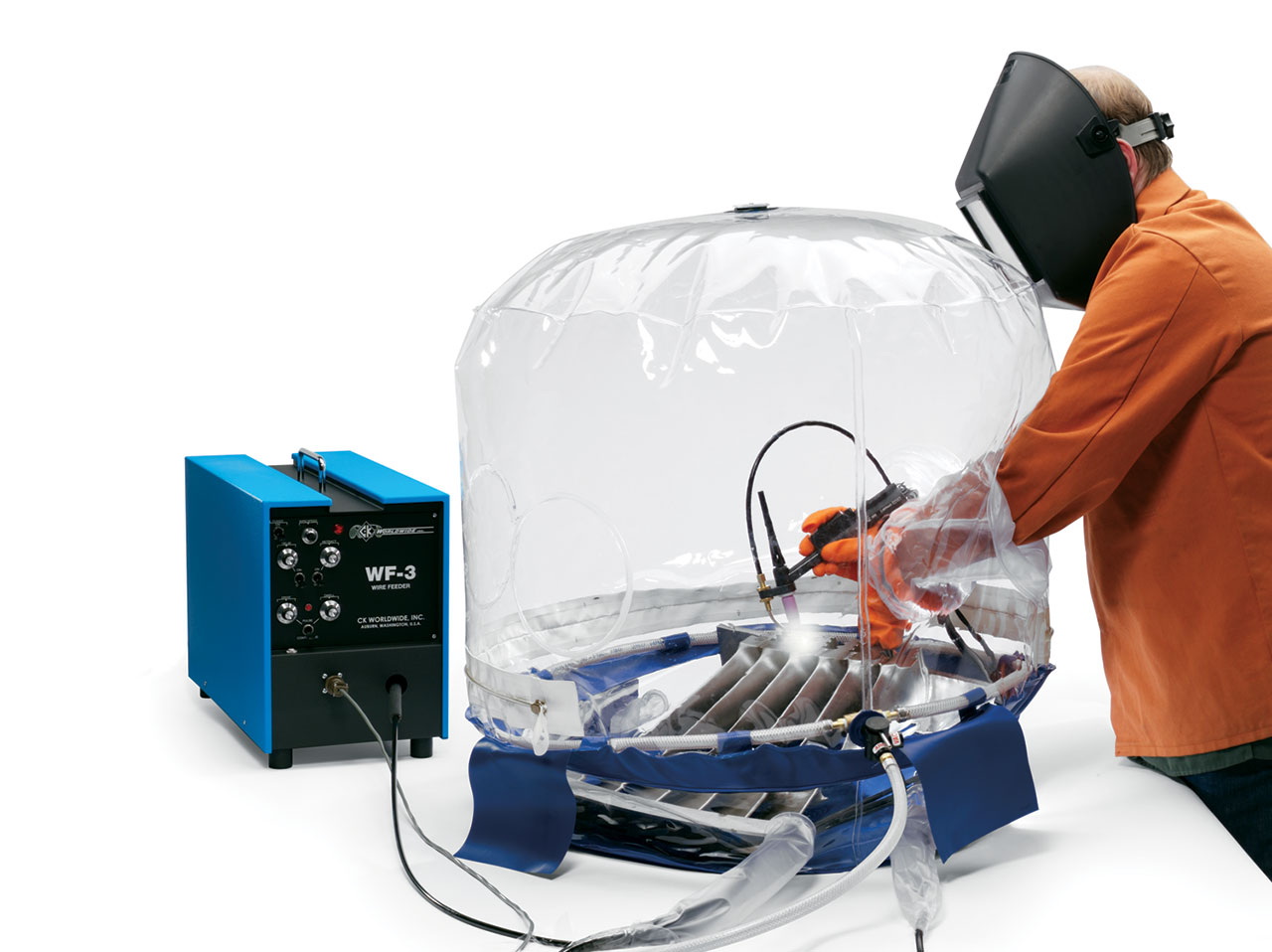

The patented CK Flexible Purge Chamber is used in the Tungsten Inert Gas (TIG) process to provide a completely inert atmosphere for the welding of reactive metals such as titanium, molybdenum, nickel-based and aluminumbased alloys, as well as non-reactive metals like stainless steel. Unique to this design is the ability to draw a vacuum around the product to be welded by collapsing the chamber. The chamber is then filled through a perforated hose that encircles the bottom of the chamber allowing the argon gas to expel all atmospheric gases more effectively through the top valve port. This significantly reduces the time required to reach an inert atmosphere suitable for welding, while using considerably less gas than traditional rigid purge chambers.

ORDER #PC2000-24

BENEFITS

Less argon required
Collapsible, easily stored
Multiple accessory & glove ports
Less expensive
Less time to fill
Vacuum drawn
Facilitates welding grade atmosphere
30" (76.8cm) diameter

SPECIFICATIONS

Height	20" (51.2cm)
Width	30" (76.8cm)
Shipping Weight	47 lbs (21.3kg)
Zipper Length	60" (153.6cm)
Standard Size	30" (76.8cm) diameter
Standard Size	24" (61.4cm) base

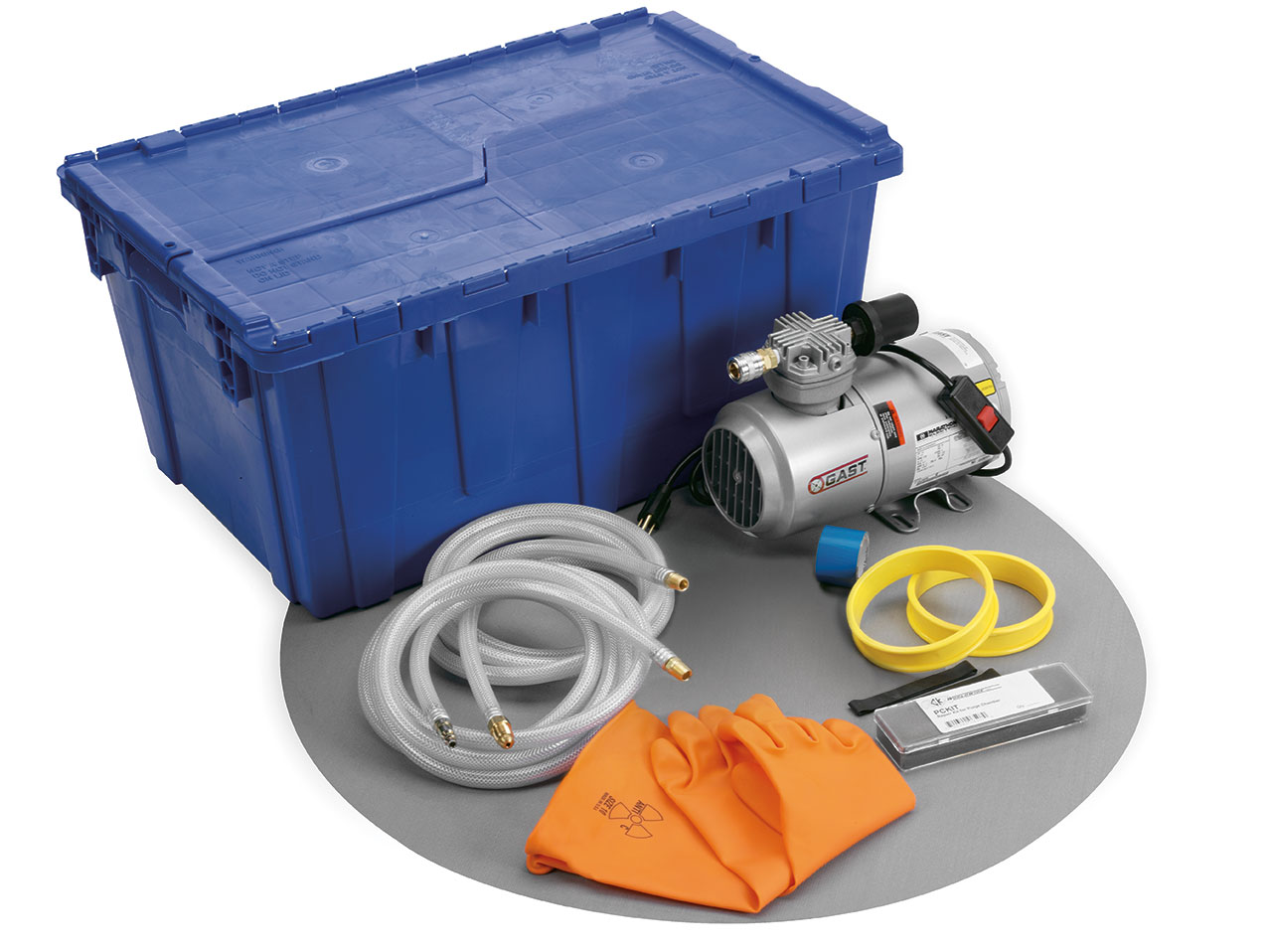

INCLUDED PARTS:

115V Vacuum pump
(220V also available)
Dual flowmeter/regulator
2 Work stations
2 Sets of gloves
4 Accessory ports
Heat blanket
10 ft. (3m) Argon hose
10 ft. (3m) Vacuum hose
Repair kit
Storage container

REGULATORS & TESTERS

GAS HOSE CK EXCLUSIVE

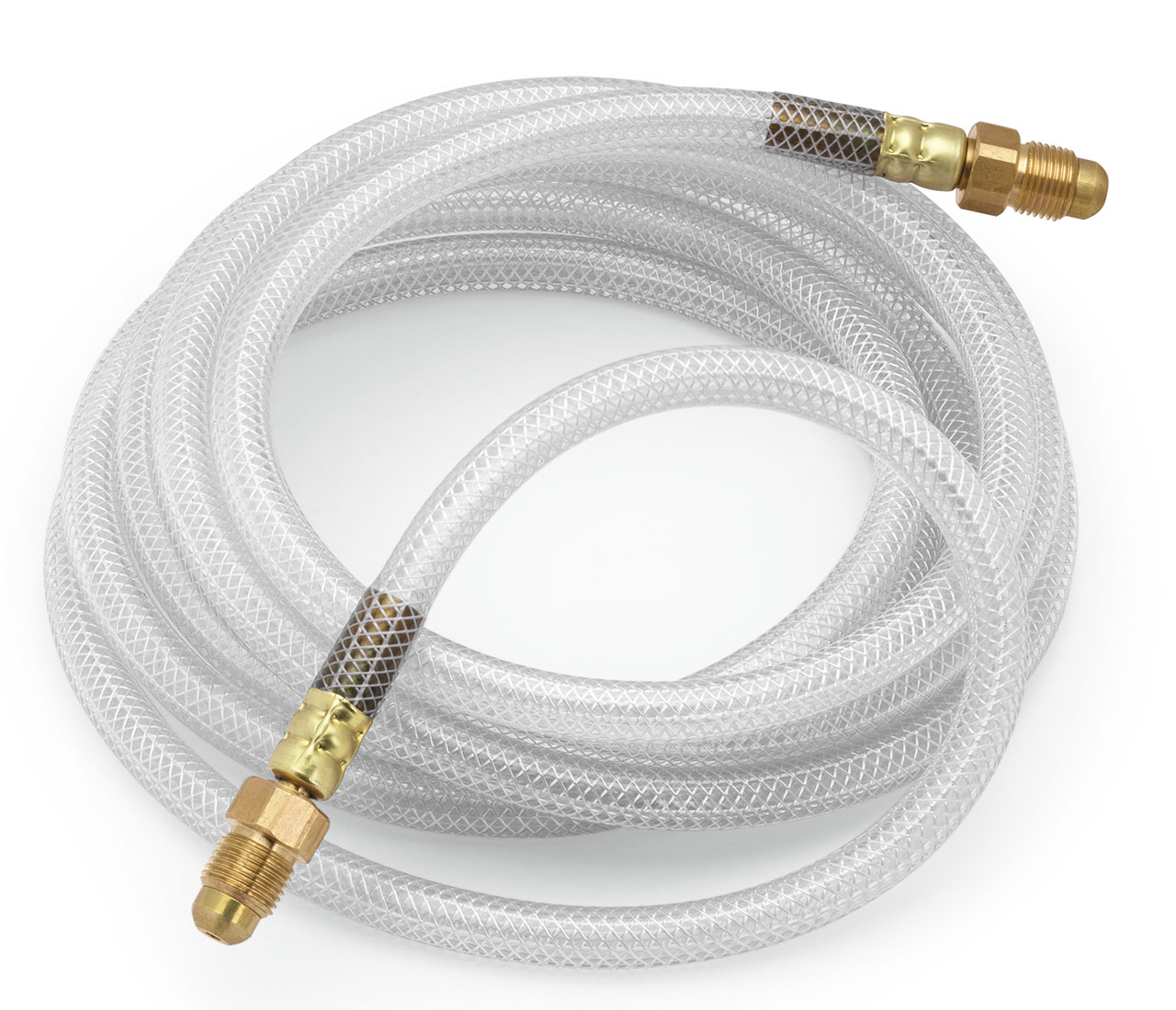

Reinforced clear vinyl 1/4" (6.4mm) inside diameter hose can be ordered in multiple lengths from 12-1/2' (3.8m) to 100' (30.5m) with fittings and as a bulk 300' (91.4m) bulk reel without fittings.

REINFORCED GAS HOSE | 1/4" (6.4mm)

Fittings	Length	INSIDE DIAMETER	ORDER#
5/8"-18RH MALE BOTH ENDS	12-1/2 ft. (3.8m)	1/4" (6.4mm)	ARH-12
	25 ft. (7.6m)	1/4" (6.4mm)	ARH-25
	50 ft. (15.2m)	1/4" (6.4mm)	ARH-50
	75 ft. (22.9m)	1/4" (6.4mm)	ARH-75
	100 ft. (30.5m)	1/4" (6.4mm)	ARH-100
BULK NO FITTINGS	300 ft. (91.4m)	1/4" (6.4mm)	ARH-Bulk*
*300' (91.4m) reels only, NO EXCEPTIONS

REGULATORS

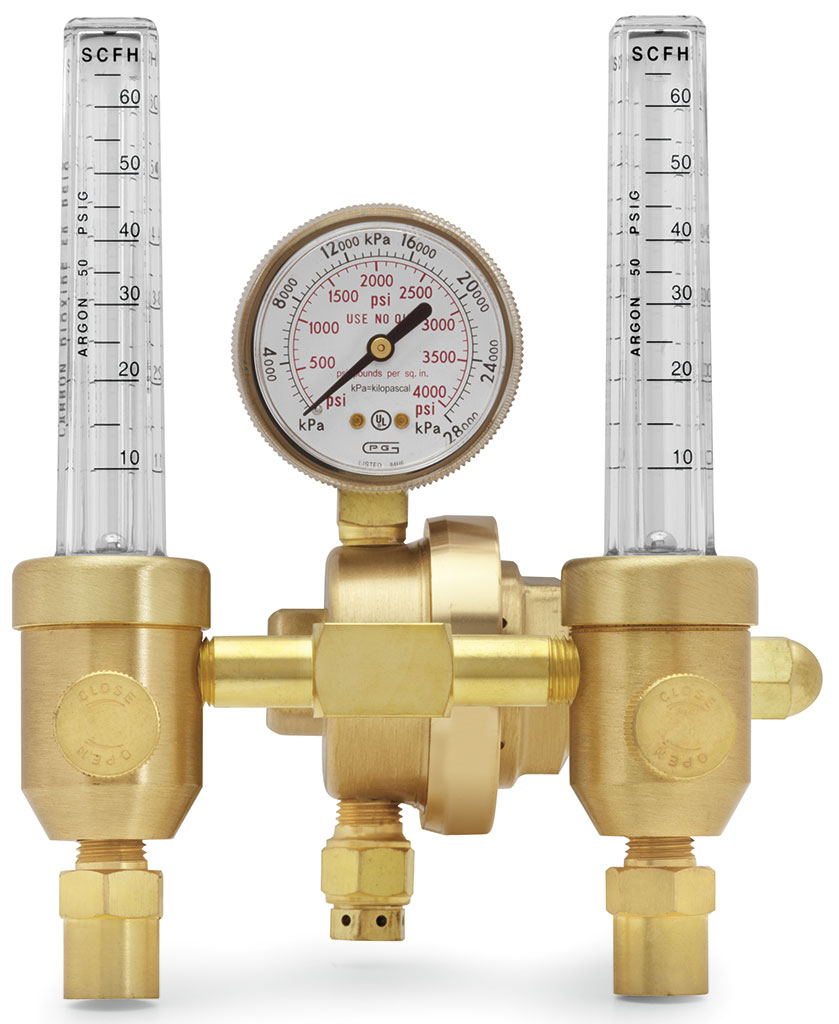

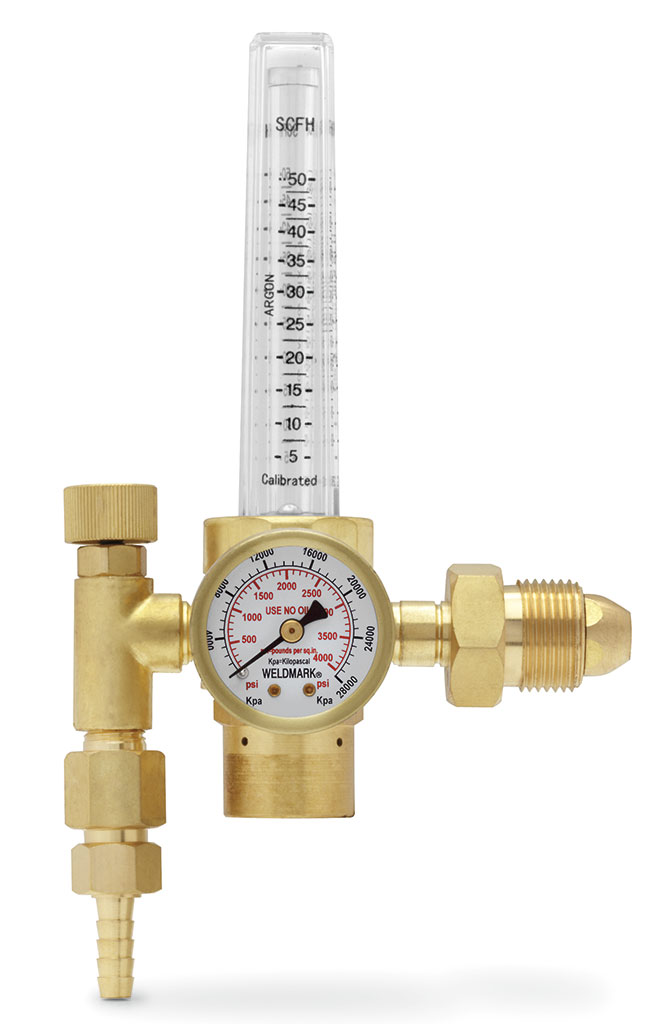

Our Regulator/Flowmeter combinations are specially designed for TIG welding applications. Unique design and construction features make these units equally suited for applications from the industrial job site to the laboratory.
