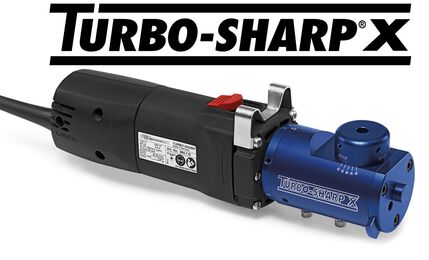

TUNGSTEN ELECTRODE GRINDER

The Turbo-Sharp X enclosed electrode grinder minimizes dust exposure to both the user and the environment while delivering consistent tip geometry.

  • Standard head for diameters:
    .040" (1.0mm)  / 1/16" (1.6mm)
    3/32" (2.4mm)  / 1/8" (3.2mm)
  • Angles adjustable from 20°– 60°
  • Eliminate grinding wheel contamination



SPECIAL FEATURES:

  • Multi-functional cover
    Through a slot in the cover one can flatten the electrode to prepare a truncated cone.
  • Setting the angle
    Angles adjustable from 20°– 60°.
  • Grinding disc
    Both sides coated with diamondpowder, giving double wheel life.
  • Unbelievable result
    TURBO-SHARP® X allows exact repetition of longitudinal grinding.
  • Ergonomic
    TURBO-SHARP® X is optimal with respect to weight and handling.

SPECIFICATIONS

SINGLE PHASE 60 Hz
POWER 710 W
AMPS 6.45
NO LOAD SPEED 34,000 RPM
WEIGHT 4.1 pounds
1,860 grams
SHIP WEIGHT 10.1 pounds
4,581 grams
WARRANTY 2 years



  • CONSISTENT RESULTS

    CONSISTENT RESULTS
    Stepless grinding angles 20°– 60°

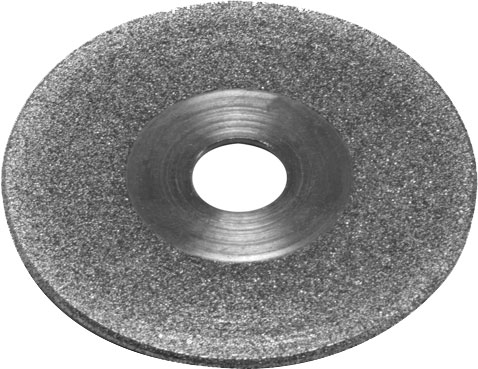

  • Both sides coated with diamond-powder

    Both sides coated with diamond-powder

  • Turbo Sharp X grinder head
    TURBO-SHARP® X can be equipped with an optional grinder head (TS3-HR). Using the red head, you can grind electrodes of diameter: 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm) and 1/4" (6.4mm)

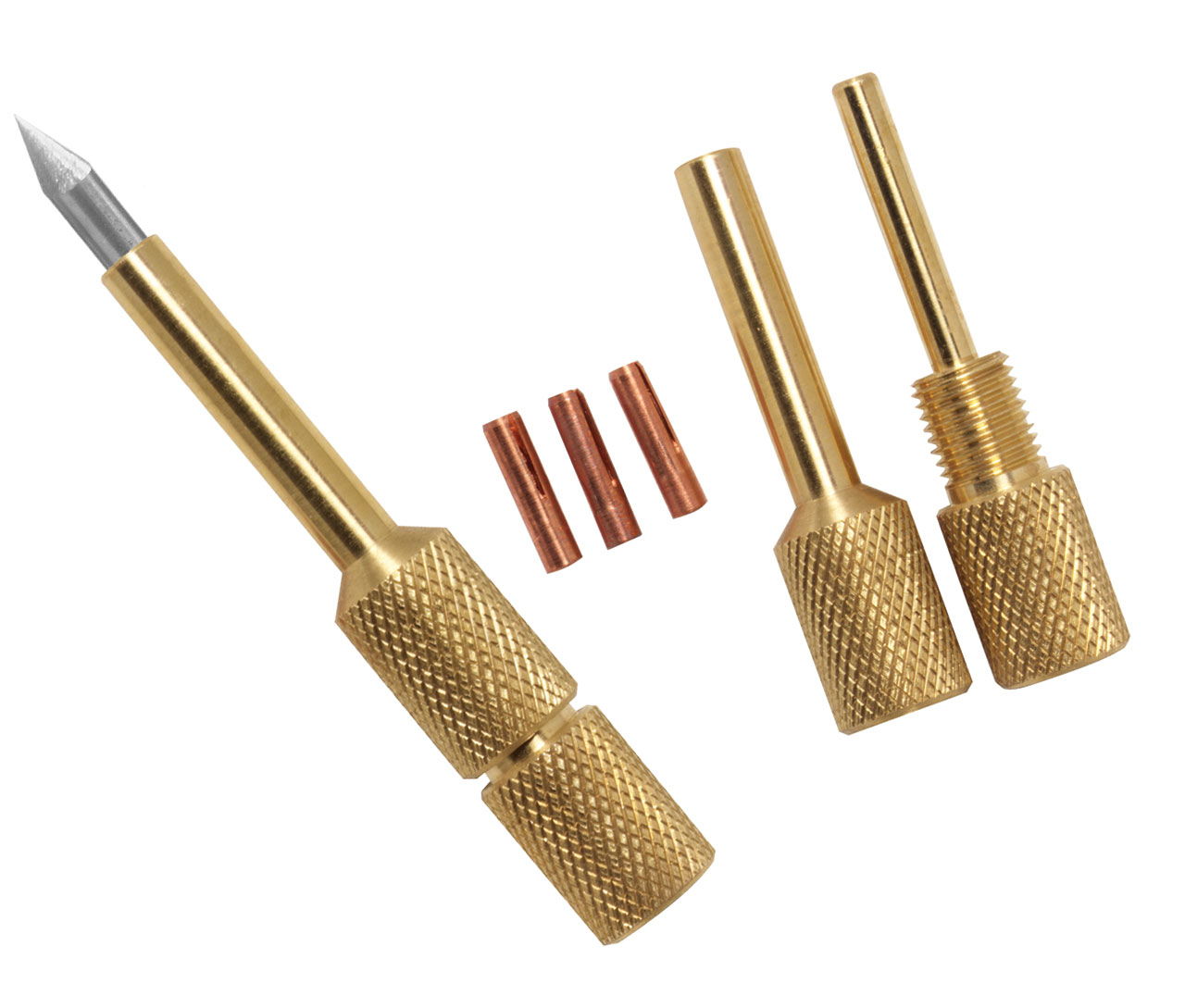

SHORT TUNGSTEN KIT

FOR USE WITH TS3-HR GRINDER HEAD ONLY
HOLDS SHORTER LENGTH TUNGSTEN
Grind tungstens as short as 3/4" (1.9cm)

SHORT TUNGSTEN KIT
INCLUDES: .040" (1.0mm), 1/16" (1.6mm) and 3/32" (2.4mm) collets

TURBO-SHARP X | ORDERING INFO

DESCRIPTION ORDER #
120 V GRINDER (Includes TS3-HB) TS10
230 V GRINDER (Includes TS3-HB) TS10-230
REPLACEMENT WHEEL TS3-W
GRINDER HEAD .040"–1/8" (1.0mm - 3.2mm) TS3-HB
GRINDER HEAD 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm), 1/4" (6.4mm) TS3-HR
SHORT TUNGSTEN KIT (TS3-HR required) TS3-STK
