Accessory Kits
2 SERIES TORCHES: CK9, CK20, CK25, CK100, CK110, CK130, CK200, CK230, CKM200, CKM230, CKPF130, CKPF200, CWH230, CWM230, FL130, FL230

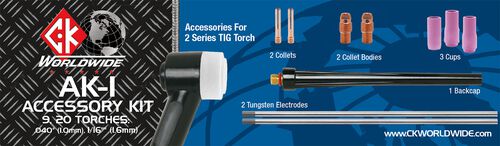

2 SERIES AK-1
| ITEM (Quantity 1 Each) | Part # |
| Long Backcap | 200L (41V24) |
| .040" (1.0mm) Collet | 2C40 (13N21) |
| 1/16" (1.6mm) Collet | 2C116 (13N22) |
| .040" (1.0mm) Collet Body | 2CB40 (13N26) |
| 1/16" (1.6mm) Collet Body | 2CB116 (13N27) |
| #4 (1/4" 6.4mm) Alumina Cup | 2A4 (13N08) |
| #5 (5/16" 8.0mm) Alumina Cup | 2A5 (13N09) |
| #6 (3/8" 9.6mm) Alumina Cup | 2A6 (13N10) |
| .040" (1.0mm) x 7" 2% Ceriated Tungsten | T0407GC2 |
| 1/16" (1.6mm) x 7" 2% Ceriated Tungsten | T1167GC2 |

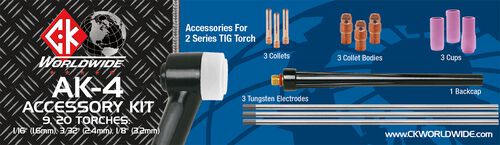

2 SERIES AK-4
| ITEM (Quantity 1 Each) | Part # |
| Long Backcap | 200L (41V24) |
| 1/16" (1.6mm) Collet | 2C116 (13N22) |
| 3/32" (2.4mm) Collet | 2C332 (13N23) |
| 1/8" (3.2mm) Collet | 2C418 (13N24) |
| 1/16" (1.6mm) Collet Body | 2CB116 (13N27) |
| 3/32" (2.4mm) Collet Body | 2CB332 (13N28) |
| 1/8" (3.2mm) Collet Body | 2CB418 (13N29) |
| #5 (5/16" 8.0mm) Alumina Cup | 2A5 (13N09) |
| #6 (3/8" 9.6mm) Alumina Cup | 2A6 (13N10) |
| #8 (1/2" 12.8mm) Alumina Cup | 2A8 (13N12) |
| 1/16" (1.6mm) x 7" 2% Ceriated Tungsten | T1167GC2 |
| 3/32" (2.4mm) x 7" 2% Ceriated Tungsten | T3327GC2 |
| 1/8" (3.2mm) x 7" 2% Ceriated Tungsten | T3327GC2 |
3 SERIES TORCHES: CK17, CK18, CK26, CK150, CK210, CK300, CK510, CKC150, CKM210, CKM350, CWH350, CWHTL300, CWM350, FL150, FL250, TL18, TL26, TL210, TL300

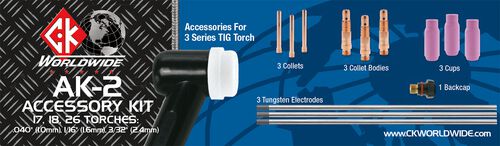

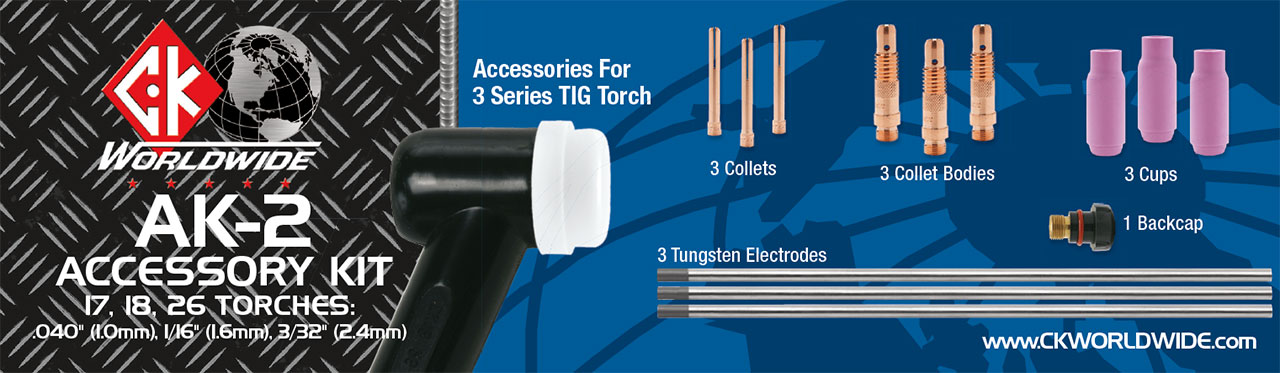

3 SERIES AK-2
| ITEM (Quantity 1 Each) | Part # |
| Short Backcap | 300S (57Y04) |
| .040" (1.0mm) Collet | 3C40 (10N22) |
| 1/16" (1.6mm) Collet | 3C116 (10N23) |
| 3/32" (2.4mm) Collet | 3C332 (10N24) |
| .040" (1.0mm) Collet Body | 3CB40 (10N30) |
| 1/16" (1.6mm) Collet Body | 3CB116 (10N31) |
| 3/32" (2.4mm) Collet Body | 3CB332 (10N32) |
| #4 (1/4" 6.4mm) Alumina Cup | 3A4 (10N50) |
| #5 (5/16" 8.0mm) Alumina Cup | 3A5 (10N49) |
| #6 (3/8" 9.6mm) Alumina Cup | 3A6 (10N48) |
| .040" (1.0mm) x 7" 2% Ceriated Tungsten | T0407GC2 |
| 1/16" (1.6mm) x 7" 2% Ceriated Tungsten | T3327GC2 |
| 3/32" (2.4mm) x 7" 2% Ceriated Tungsten | T3327GC2 |
3 SERIES AK-3
| ITEM (Quantity 1 Each) | Part # |
| Long Backup | 300L (57Y02) |
| Short Backcap | 300S (57Y04) |
| 1/16" (1.6mm) Collet | 3C116 (10N23) |
| 3/32" (2.4mm) Collet | 3C332 (10N24) |
| 1/8" (3.2mm) Collet | 3C332 (10N24) |
| 1/16" (1.6mm) Collet Body | 3CB116 (10N31) |
| 3/32" (2.4mm) Collet Body | 3CB332 (10N32) |
| 1/8" (3.2mm) Collet Body | 3CB418 (10N28) |
| #5 (5/16" 8.0mm) Alumina Cup | 3CB418 (10N28) |
| #6 (3/8" 9.6mm) Alumina Cup | 3A6 (10N48) |
| #8 (1/2" 12.8mm) Alumina Cup | 3A8 (10N46) |
| 1/16" (1.6mm) x 7" 2% Ceriated Tungsten | T1167GC2 |
| 3/32" (2.4mm) x 7" 2% Ceriated Tungsten | T3327GC2 |
| 1/8" (3.2mm) x 7" 2% Ceriated Tungsten | T187GC2 |
STUBBY GAS LENS KITS: 4 Series Consumables for 3 Series Torches

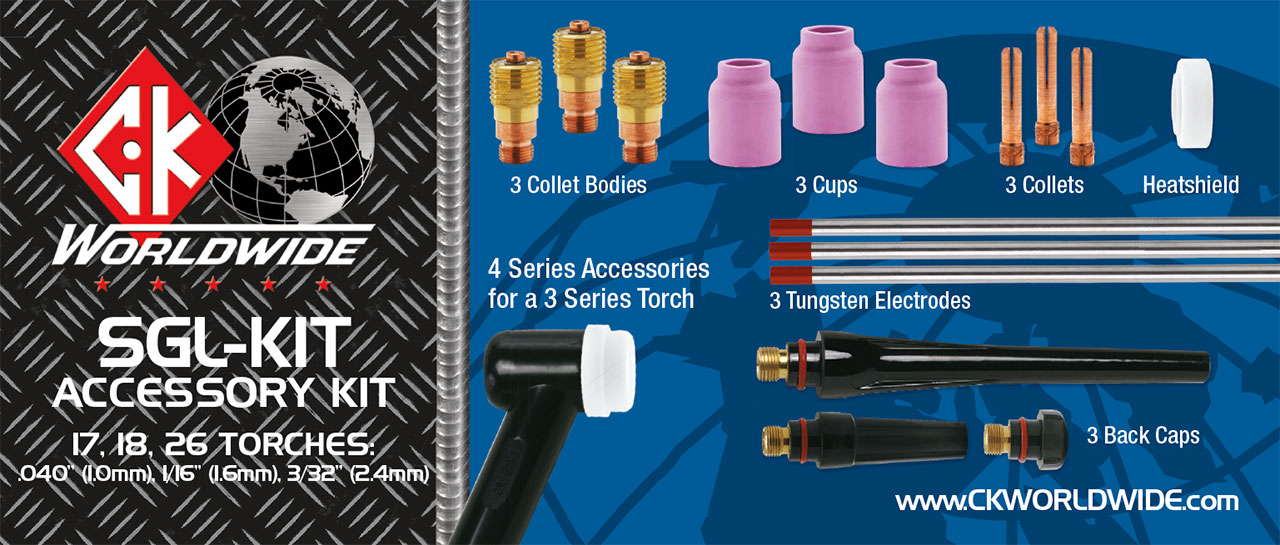

LOW AMPERAGE STUBBY #SGL-KIT
| ITEM (Quantity 1 Each) | Part # |
| BACKCAPS: Short, Medium, and Long | 300S / 300M / 300L |
| .040" (1.0mm) Collet / Gas Lens | 4C40 / 4GL40 |
| 1/16" (1.6mm) Collet / Gas Lens | 4C116 / 4GL116 |
| 3/32" (2.4mm) Collet / Gas Lens | 4C332 / 4GL332 |
| #5 (5/16" 8.0mm) Alumina Cup | 2AG5 |
| #6 (3/8" 9.6mm) Alumina Cup | 2AG6 |
| #7 (7/16" 12.8mm) Alumina Cup | 2AG7 |
| Heatshield | 4GHS |
| .040" (1.0mm) x 7" 2% Thoriated Tungsten | T0407GT2 |
| 1/16" (1.6mm) x 7" 2% Thoriated Tungsten | T1167GT2 |
| 3/32" (2.4mm) x 7" 2% Thoriated Tungsten | T1167GT2 |

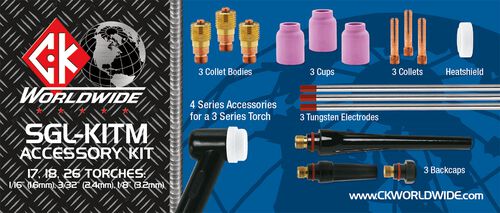

HIGH AMPERAGE STUBBY SGL-KITM
| ITEM (Quantity 1 Each) | Part # |
| BACKCAPS: Short, Medium, and Long | 300S / 300M / 300L |
| 1/16" (1.6mm) Collet / Gas Lens | 4C116 / 4GL116 |
| 3/32" (2.4mm) Collet / Gas Lens | 4C332 / 4GL332 |
| 1/8" (3.2mm) Collet / Gas Lens | 4C418 / 4GL418 |
| #6 (3/8" 9.6mm) Alumina Cup | 2AG6 |
| #7 (7/16" 12.8mm) Alumina Cup | 2AG7 |
| #8 (1/2" 12.8mm) Alumina Cup | 2AG8 |
| Heatshield | 4GHS |
| 1/8" (3.2mm) x 7" 2% Thoriated Tungsten | T187GT2 |
| 1/16" (1.6mm) x 7" 2% Thoriated Tungsten | T1167GT2 |
| 3/32" (2.4mm) x 7" 2% Thoriated Tungsten | T1167GT2 |
2 SERIES TORCHES: CK9, CK20, CK25, CK100, CK110, CK130, CK200, CK230, CKM200, CKM230, CKPF130, CKPF200, CWH230, CWM230, FL130, FL230

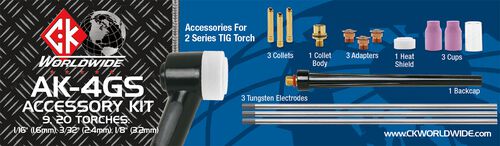

2 SERIES GAS SAVER AK-4GS
| ITEM (Quantity 1 Each) | Part # |
| Long Backcap | 200L (41V24) |
| 1/16" (1.6mm) Collet | 2C116GS |
| 3/32" (2.4mm) Collet | 2C332GS |
| 1/8" (3.2mm) Collet | 2C418GS |
| 1/16" (1.6mm) Tungsten Adapter | TAS116GS |
| 3/32" (2.4mm) Tungsten Adapter | TAS332GS |
| 1/8" (3.2mm) Tungsten Adapter | TAS418GS |
| Collet Body | 2CBGS-1 |
| Heatshield | 2HSGS-1 |
| #4 (1/4" 6.4mm) Alumina Cup | 2A4GS |
| #6 (3/8" 9.6mm) Alumina Cup | 2A6GS |
| #8 (1/2" 12.8mm) Pryex Cup | 2P8GS |
| 1/16" (1.6mm) x 7" 2% Ceriated Tungsten | T1167GC2 |
| 3/32" (2.4mm) x 7" 2% Ceriated Tungsten | T3327GC2 |
| 1/8" (3.2mm) x 7" 2% Ceriated Tungsten | T187GC2 |

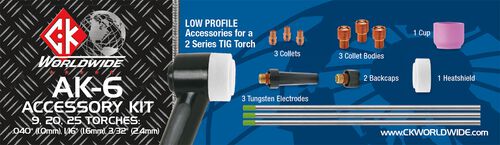

2 SERIES LOW PROFILE AK-6
| ITEM (Quantity 1 Each) | Part # |
| Short Backcap | 200S |
| Medium Backcap | 200M |
| .040" (1.0mm) Collet | 6C40 |
| 1/16" (1.6mm) Collet | 6C116 |
| 3/32" (2.4mm) Collet | 6C332 |
| .040" (1.0mm) Collet Body | 6CB40 |
| 1/16" (1.6mm) Collet Body | 6CB116 |
| 3/32" (2.4mm) Collet Body | 6CB332 |
| (.38" 9.5mm) Alumina Cup | PSNS8A6 |
| Heatshield | 2HSGS-1 |
| .040" (1.0mm) x 7" LaYZr™ Tungsten | T0407GTM |
| 1/16" (1.8mm) x 7" LaYZr™ Tungsten | T1167GTM |
| 3/32" (2.4mm) x 7" LaYZr™ Tungsten | T3327GTM |
8 SERIES TORCHES: CK80, CK90, CK180, CWH180, CK2, CK24W

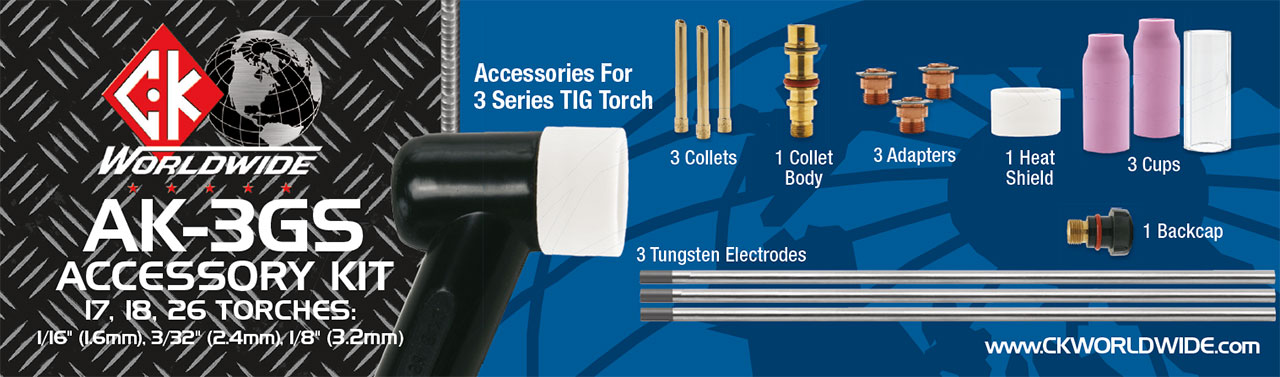

3 SERIES GAS SAVER AK-3GS
| ITEM (Quantity 1 Each) | Part |
| Short Backcap | 300S (57Y04) |
| 1/16" (1.6mm) Collet | 3C116GS |
| 3/32" (2.4mm) Collet | 3C332GS |
| 1/8" (3.2mm) Collet | 3C418GS |
| 1/16" (1.6mm) Tungsten Adapter | TAS116GS |
| 3/32" (2.4mm) Tungsten Adapter | TAS332GS |
| 1/8" (3.2mm) Tungsten Adapter | TAS418GS |
| Collet Body | 3CBGS |
| Heatshield | 3HSGS |
| #5 (5/16" 8.0mm) Alumina Cup | 3A5GS |
| #6 (3/8" 9.6mm) Alumina Cup | 3A6GS |
| #8 (1/2" 12.8mm) Pryex Cup | 3P8GS |
| 1/16" (1.6mm) x 7" 2% Ceriated Tungsten | T1167GC2 |
| 3/32" (2.4mm) x 7" 2% Ceriated Tungsten | T3327GC2 |
| 1/8" (3.2mm) x 7" 2% Ceriated Tungsten | T187GC2 |
8 SERIES AK-5
| ITEM (Quantity 1 Each) | Part # |
| .040" (1.0mm) Collet | 8C40 (53N16) |
| 1/16" (1.6mm) Collet | 8C116 (53N14) |
| .040" (1.0mm) Collet Body | 8CB40 (53N18) |
| 1/16" (1.6mm) Collet Body | 8CB116 (53N19) |
| #4 (1/4" 6.4mm) Ceramic Cup | 8C4 (53N24) |
| #5 (5/16" 8.0mm) Ceramic Cup | 8C5 (53N25) |
| #6 (3/8" 9.6mm) Ceramic Cup | 8C6 (53N27) |
| .040" (1.0mm) x 7" 2% Ceriated Tungsten | T0407GC2 |
| 1/16" (1.6mm) x 7" 2% Ceriated Tungsten | T0407GC2 |

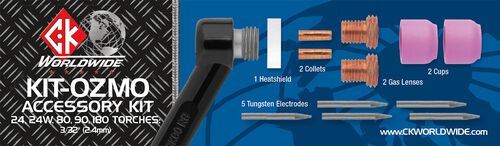

OZMO KIT | KIT-OZMO
USE OZMO ON TORCHES: CK24, CK24W, CK80, CK90, CK180
| ITEM | QTY | PART # |
| 3/32" (2.4mm) Collet | 2 | PSNS8C332 |
| 3/32" (2.4mm) Gas Lens | 2 | 8GL332 |
| .38" (9.5mm) Alumina Cup | 2 | PSNS8A6 |
| Heatshield | 1 | PSNSHSOZ |
| 3/32"(2.4mm) x 0.9" 2% Ceriated Tungsten – 5 Pack |
1 | T3329S20GC2 |

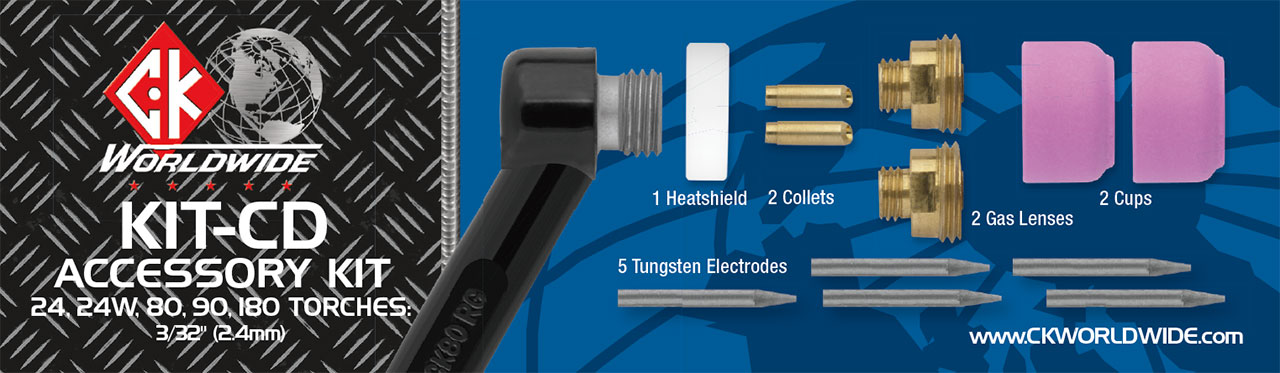

CUT DOWN KIT KIT-CD
USE CUT-DOWN ON TORCHES: CK24, CK24W, CK80, CK90, CK180
| ITEM | QTY | PART # |
| 3/32" (2.4mm) Collet | 2 | PSNS8C332 |
| 3/32" (2.4mm) Gas Lens | 2 | 8GL332 |
| .46" (11.8mm) Alumina Cup | 2 | PSNS2AG75 |
| Heatshield | 1 | PSNSHS |
| 3/32"(2.4mm) x 0.9" 2% Ceriated Tungsten – 5 Pack |
1 | T3329S20GC2 |
8 SERIES AK-5 (Kopie)
| ITEM (Quantity 1 Each) | Part # |
| .040" (1.0mm) Collet | 8C40 (53N16) |
| 1/16" (1.6mm) Collet | 8C116 (53N14) |
| .040" (1.0mm) Collet Body | 8CB40 (53N18) |
| 1/16" (1.6mm) Collet Body | 8CB116 (53N19) |
| #4 (1/4" 6.4mm) Ceramic Cup | 8C4 (53N24) |
| #5 (5/16" 8.0mm) Ceramic Cup | 8C5 (53N25) |
| #6 (3/8" 9.6mm) Ceramic Cup | 8C6 (53N27) |
| .040" (1.0mm) x 7" 2% Ceriated Tungsten | T0407GC2 |
| 1/16" (1.6mm) x 7" 2% Ceriated Tungsten | T0407GC2 |
