COLD WIRE CONDUITS AND WIRE GUIDES

The chart below can be used for finding part numbers based on the torch and size/type of wire that is being used. Our standard lengths for the Wire Conduit is 8 ft. (2.4m) for SOFT wire, and 10 ft. (3m) for HARD wire to help prevent feeding problems.

RECOMMENDED COLD WIRE CONDUIT AND WIRE GUIDES

      PART NUMBER
TIG TORCH WIRE SIZE WIRE TYPE WIRE CONDUIT WIRE GUIDE
(Tube and Tip)
TUBE TIP
Body Mounted
CWH180
CWH230
CWM230
CWMT500
.023" (.5 mm) – .030" (.8 mm) Hard CW-FC CWG030B CWGB CWT030
.023" (.5 mm) – .030" (.8 mm) Soft NOT RECOMMENDED N/A N/A N/A
.035" (.9 mm) Hard CW-FC CWG035B CWGB CWT035
.035" (.9 mm) Soft CW-FCN CWG035B CWGB CWT035
.045" (1.1 mm) Hard CW-FC CWG045B CWGB CWT045
3/64" (1.2 mm) Soft CW-FCN CWG116B NONE NONE

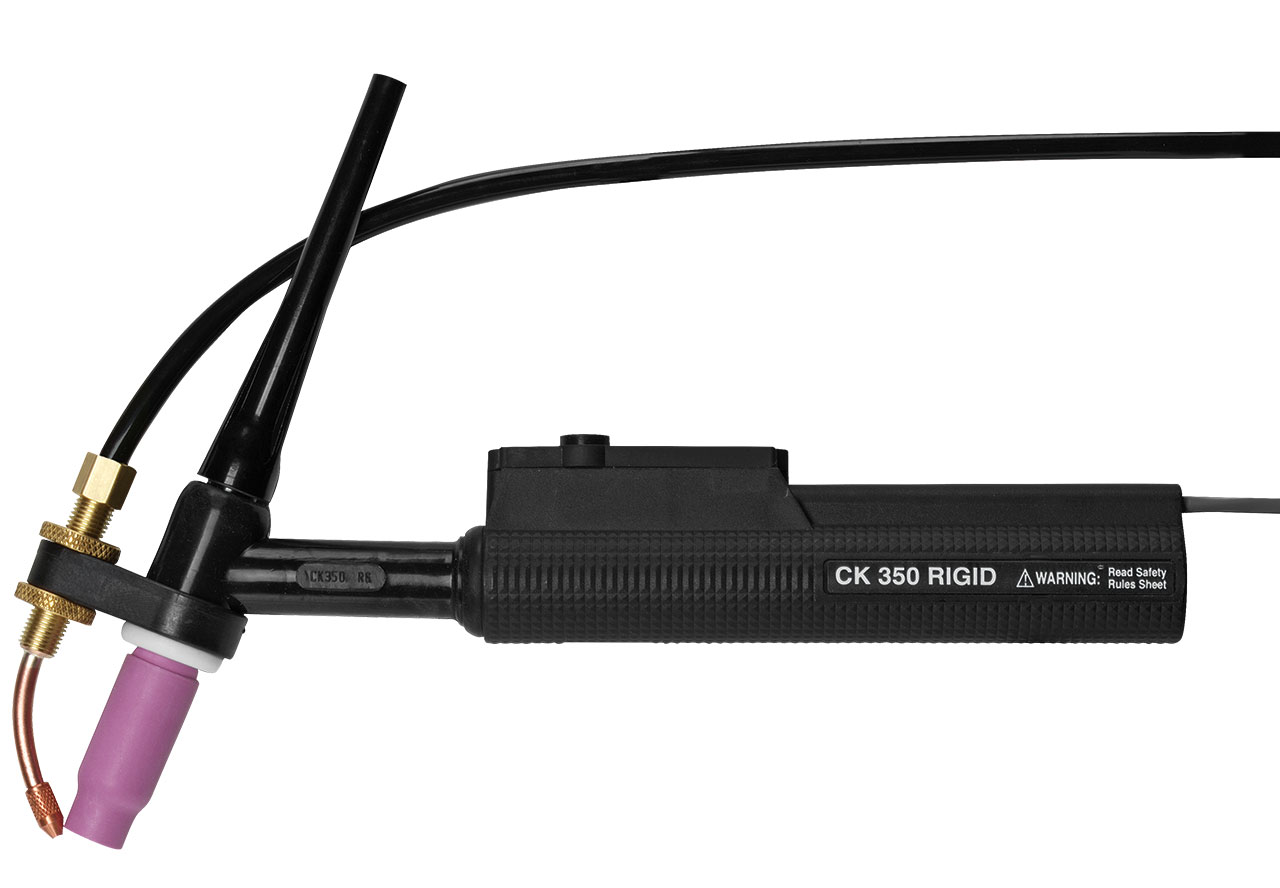

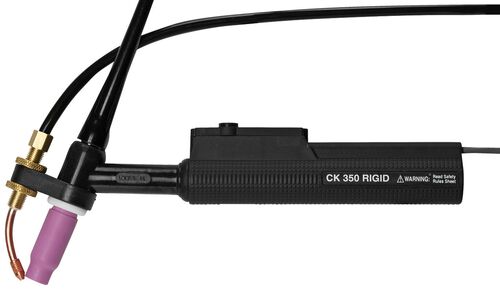

Front Mounted
CWHTL300
CWH350
CWM350
CWMT400
.023" (.5 mm) – .030" (.8 mm) Hard CW-FC CWG030H CWGH CWT030
.023" (.5 mm) – .030" (.8 mm) Soft NOT RECOMMENDED N/A N/A N/A
.035" (.9 mm) Hard CW-FC CWG035H CWGH CWT035
.035" (.9 mm) Soft CW-FCN CWG035H CWGH CWT035
.045" (1.1 mm) Hard CW-FC CWG045H CWGH CWT045
3/64" (1.2 mm) Soft CW-FCN116 CWG116H NONE NONE
1/16" (1.6 mm) Hard CW-FCN116 CWG116H NONE NONE
1/16" (1.6 mm) Soft CW-FCN116 CWG116H NONE NONE

CWH .023" (.5 mm) – .030" (.8 mm) Hard CW-FC CWG030HS CWGHS CWT030
.023" (.5 mm) – .030" (.8 mm) Soft CW-FCN CWG030HS CWGHS CWT030
.035" (.9 mm) Hard CW-FC CWG035HS CWGHS CWT035
.035" (.9 mm) Soft CW-FCN CWG035HS CWGHS CWT035
.045" (1.1 mm) Hard CW-FC CWG045HS CWGHS CWT045
3/64" (1.2 mm) Soft CW-FCN116 CWG116HS NONE NONE
1/16" (1.6 mm) Hard CW-FCN116 CWG116HS NONE NONE
1/16" (1.6 mm) Soft CW-FCN116 CWG116HS NONE NONE

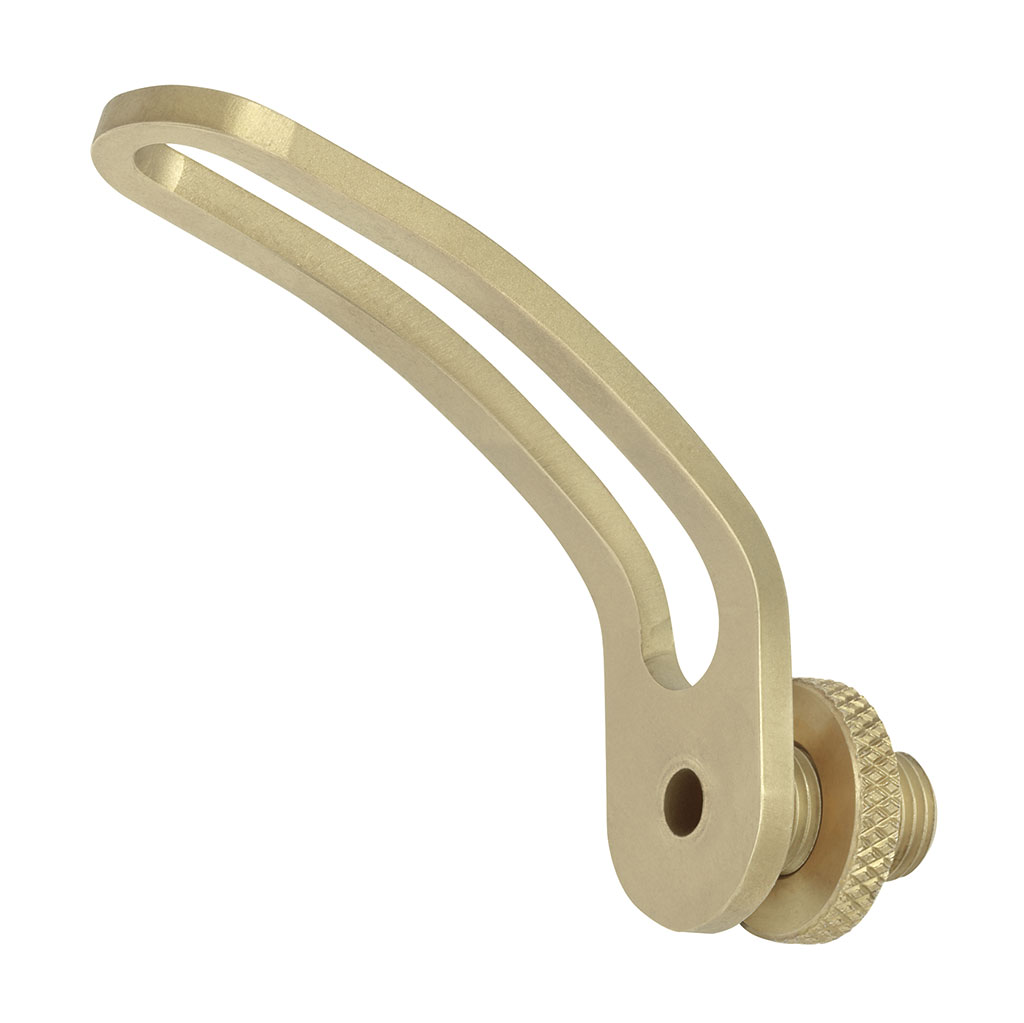

COLD WIRE EXTENSION BRACKET

Extension Bracket
Extension Bracket
  • Used for multiple different angles
  • Works well with both soft and hard wire types
  • Increases the feedability of the wire
