MACHINE ROBOTIC TORCHES
Largest Line of Machine Robotic Torches
- All torches are back-loaded, no need to remove cup to make adjustments

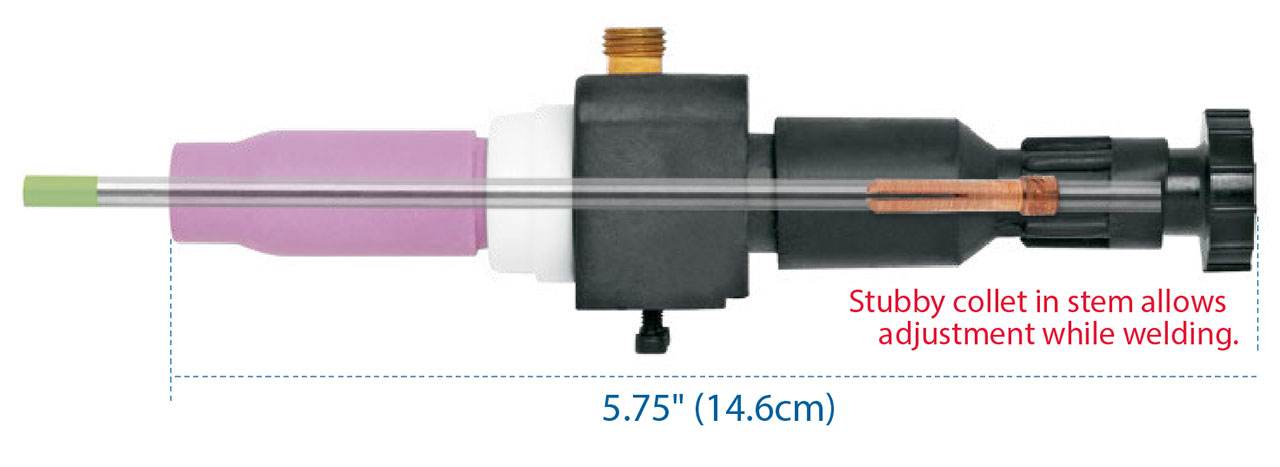

- Adjust tungsten up to 3/4" (19mm) without removing tungsten from torch (MT100, MT400)
- Uses standard 10N Series cup and collet body, 10N “stubby” collet
- High temperature phenolic resin insulation

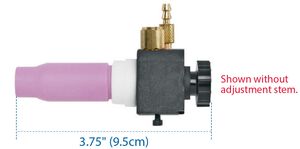

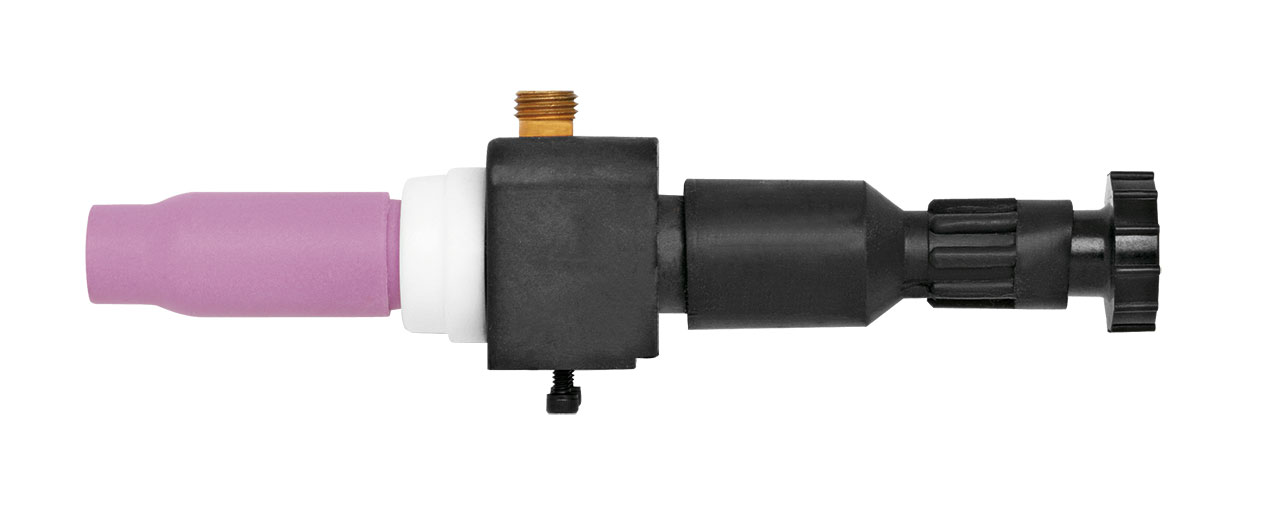

MT100 | GAS COOLED | COMPACT | 100 AMP
| Head Style | Cable | Cable Length | Standard # | Super-Flex # | Specifications |
| FACE PLATE MOUNTED |
1 Piece | 12.5 ft. (3.8m) | MT112 | MT112SF | 4-1/16" (10.3cm) 5-3/4 oz (163gm) Machine Series Head Accessories (4 Series Collet) |
| 1 Piece | 25 ft. (7.6m) | MT125 | MT125SF | ||
| PARTS MT CONSUMABLES 74 / TORCH 79 / CABLES 57 / ADAPTER/DINSE 45–47 & 50 |
|||||

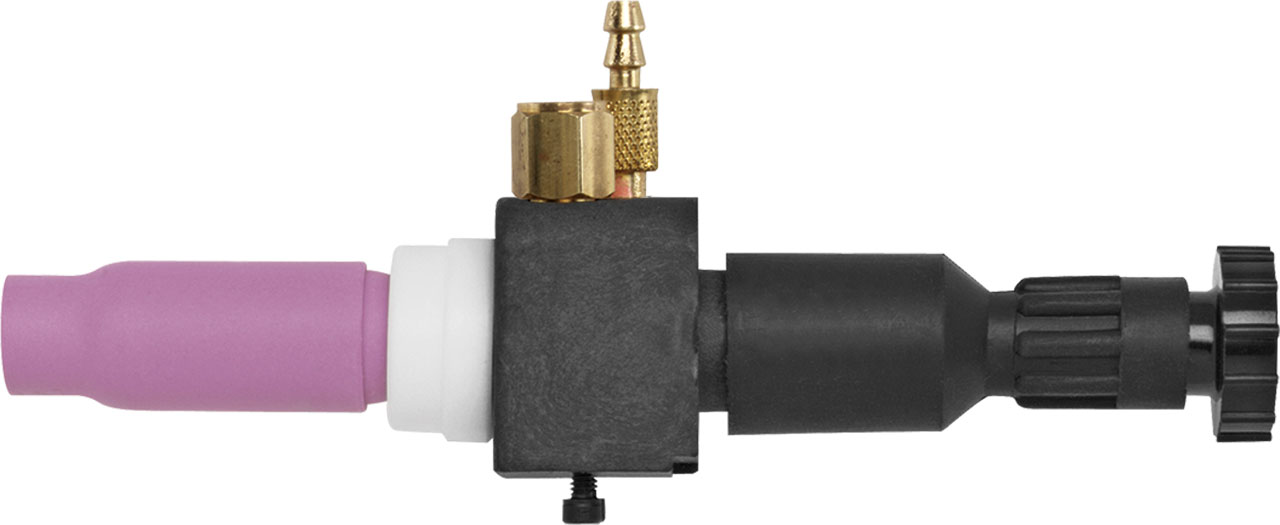

MT400 | WATER COOLED | COMPACT | 400 AMP
| Head Style | Cable | Cable Length | Standard # | Super-Flex # | Specifications |
| FACE PLATE MOUNTED |
1 Piece | 12.5 ft. (3.8m) | MT412-1 | MT412SF-1 | 4-1/16" (10.3cm) 6-1/4 oz (177gm) Machine Series Head Accessories (4 Series Collet) |
| 1 Piece | 25 ft. (7.6m) | MT425-1 | MT425SF-1 | ||
| PARTS MT CONSUMABLES 74 / TORCH 79 / CABLES 57 / ADAPTER/DINSE 45–47 & 50 |
|||||
