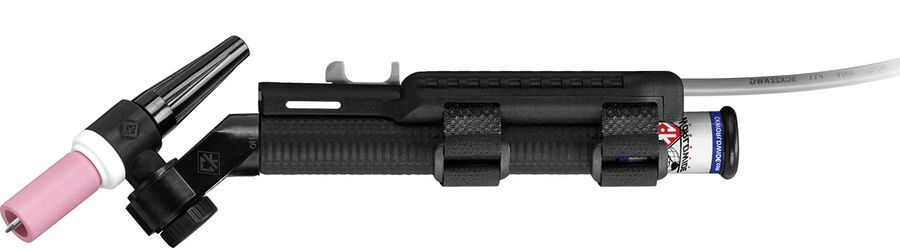

STEADY-GRIP™
REMOTE AMPERAGE CONTROL
CK Exclusive Design

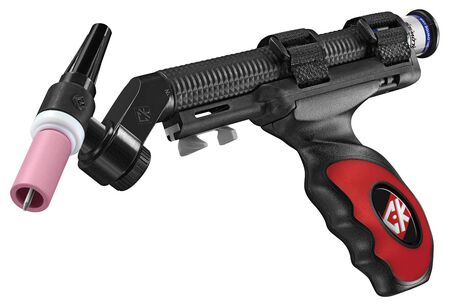

With a removable or adjustable pistol-grip style handle the Steady-Grip™ gives the operator smooth, accurate, and ergonomic control over the TIG welding process. This full amperage control can be fitted to almost any machine and provides machine contactor ON/OFF and gas solenoid activation.
- ON/OFF
- Full amperage control
- Gas solenoid activation
- Ergonomic grip
- Adjustable / removable handle
- Trigger control
TRIGGER AMPERAGE CONTROL SELECTOR CHART
| MACHINE MAKE POTENTIOMETER RATING |
CONTROL TYPE | PLUG CONFIG & PIN COUNT |
CONTROL CABLE LENGTH |
VELCRO® STRAPS* ONE SIZE FITS ALL |
| CK WORLDWIDE MT200-AC/DC 10K Ohm |
Steady-Grip | 5 Pin Plug | 14 ft. (4.2 m) | SGACV-10-1-MT5 |
| 26.5 ft. (8.0 m) | SGACV-10-2-MT5 | |||
| 53 ft. (16.2 m) | SGACV-10-3-MT5 | |||
| LINCOLN ELECTRIC 10K Ohm |
Steady-Grip | 5 Pin Plug | 14 ft. (4.2 m) | SGACV-10-1-L5 |
| 26.5 ft. (8.0 m) | SGACV-10-2-L5 | |||
| 53 ft. (16.2 m) | SGACV-10-3-L5 | |||
| 6 Pin Plug | 14 ft. (4.2 m) | SGACV-10-1-L6 | ||
| 26.5 ft. (8.0 m) | SGACV-10-2-L6 | |||
| 53 ft. (16.2 m) | SGACV-10-3-L6 |
|||
| MILLER ELECTRIC 1K Ohm |
Steady-Grip | 14 Pin Plug | 14 ft. (4.2 m) | SGACV-1-1-M14 |
| 26.5 ft. (8.0 m) | SGACV-1-2-M14 | |||
| 53 ft. (16.2 m) | SGACV-1-3-M14 | |||
| Steady-Grip | 5 Pin Plug | 14 ft. (4.2 m) | SGACV-1-1-M5 | |
| 26.5 ft. (8.0 m) | SGACV-1-2-M5 | |||
| 53 ft. (16.2 m) | SGACV-1-3-M5 | |||
| *Velcro® style is the only available style for Steady-Grip™ | ||||
